LMH6401IRMZR: 4.5GHz, Ultra-Wideband Digital Variable Gain Amplifier, UQFN-19

Model: LMH6401IRMZR

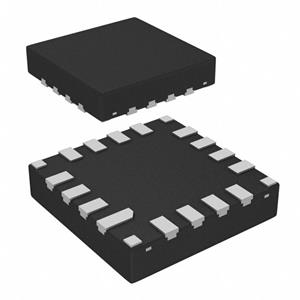

Package: UQFN-19

Type: RF Amplifier — Variable Gain Amplifier

Overview:

The LMH6401IRMZR is a broadband, digitally controlled variable gain amplifier (DVGA) for DC-to-RF, intermediate frequency (IF), and high-speed time-domain applications. This device serves as an ideal ADC driver for DC- or AC-coupled applications requiring automatic gain control (AGC).

The LMH6401IRMZR is optimised for noise and distortion performance to drive ultra-wideband ADCs. The amplifier exhibits a noise figure of 8 dB at maximum gain and harmonic distortion of -63 dBc at 1 GHz full-scale signal level. The device supports both single-supply and split-supply operation for driving ADCs. It provides a common-mode reference input pin to ensure the amplifier output common-mode meets ADC input requirements.

LMH6401IRMZR Features:

3dB bandwidth: 4.5GHz (at 26dB gain)

Gain range: –6dB to 26dB (1dB steps)

Differential input impedance: 100Ω

Differential output with common-mode control

Noise figure: 8dB at 1GHz, RS = 100Ω

82ps rise/fall time pulse response

Supply voltage: 5.0V/69mA

Supports single supply and (±) isolated supply operation:

DC and AC-coupled applications

Manufactured using advanced complementary BiCMOS process technology

3mm × 3mm ultra-thin quad flat no-lead (UQFN)-16 package
