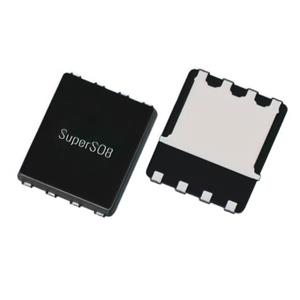

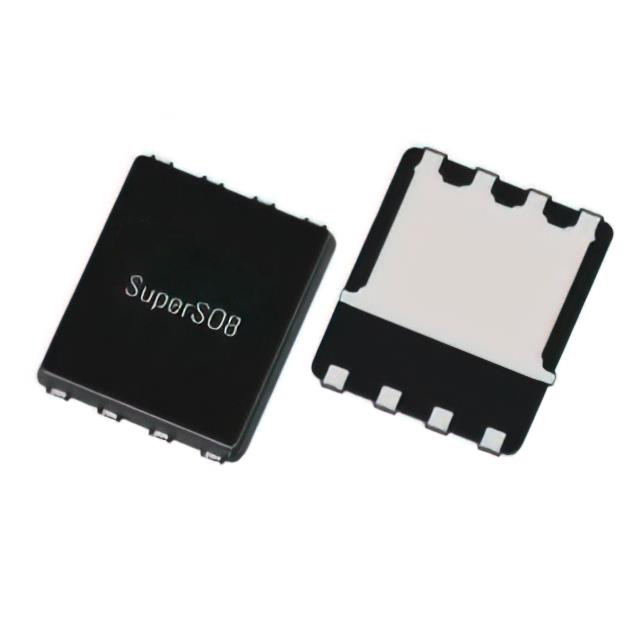

ISC110N12NM6 [Infineon] N-channel power MOSFET – 120V, OptiMOS™ 6 power MOSFET transistor, PG-TDSON-8

Product Details:

Model: ISC110N12NM6

Package: PG-TDSON-8

Type: N-channel power MOSFET transistor

ISC110N12NM6 Product Attributes:

Series: OptiMOS™ 6

FET Type: N-channel

Technology: MOSFET (Metal Oxide Semiconductor)

Drain-Source Voltage (Vdss): 120 V

Current at 25°C - Continuous Drain (Id): 11A (Ta), 62A (Tc)

Drive Voltage (Maximum Rds On, Minimum Rds On): 8V, 10V

On-Resistance at Different Id, Vgs (Max): 11 mΩ @ 26A, 10V

Vgs(th) at Different Id (Max): 3.6V @ 35µA

Gate Charge (Qg) at Different Vgs (Max): 19.3 nC @ 10V

Vgs (Max): ±20V

Input capacitance (Ciss) at different Vds (maximum): 1400 pF @ 60 V

Power dissipation (maximum): 3W (Ta), 94W (Tc)

Operating temperature: -55°C to 175°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: SuperSO8

Package/Case: 8-PowerTDFN

ISC110N12NM6 Product Advantages:

Extremely low on-resistance

Extremely low reverse recovery charge

Excellent gate charge x RDS(on)

High avalanche energy rating

175°C junction temperature rating
