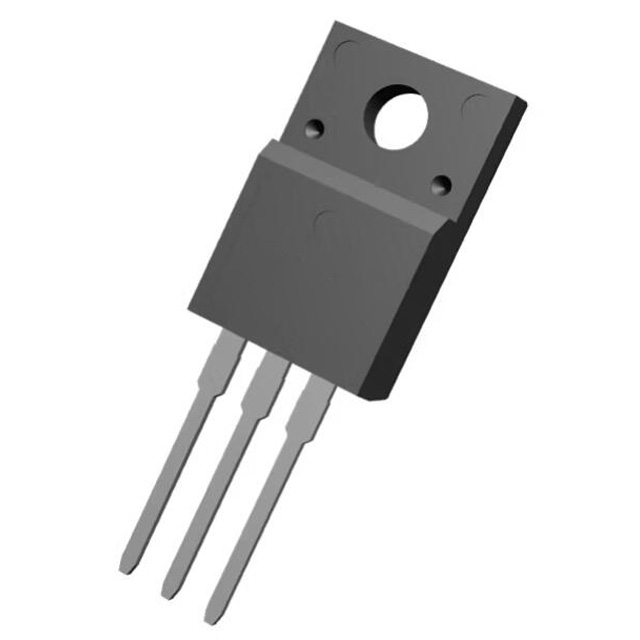

【IPA95R450P7】950V, CoolMOS™ P7 N-channel power MOSFET transistor, PG-TO220-3

IPA95R450P7 Specifications:

Series: CoolMOS™ P7

FET Type: N-channel

Technology: MOSFET (Metal Oxide Semiconductor)

Drain-Source Voltage (Vdss): 950 V

Continuous Drain Current at 25°C (Id): 14 A (Tc)

Drive Voltage (Maximum Rds On, Minimum Rds On): 10 V

On-Resistance at Different Id and Vgs (Maximum): 450 mΩ @ 7.2 A, 10 V

Vgs(th) at different Id (Max): 3.5V @ 360µA

Gate Charge (Qg) at different Vgs (Max): 35 nC @ 10 V

Vgs (Max): ±20V

Input Capacitance (Ciss) at different Vds (Max): 1053 pF @ 400 V

Power dissipation (maximum): 30W (Tc)

Operating temperature: -55°C to 150°C (TJ)

IPA95R450P7 Product Features:

CoolMOS™ 7 series

Low gate charge

Low storage energy in COSS

Integrated gate resistor

High hard-switching efficiency

Fully insulated package

Related Information:

Infineon's latest 950 V CoolMOS™ P7 technology targets the low-power SMPS market, suitable for diverse applications ranging from lighting, smart meters, mobile phone chargers, and laptop adapters to AUX power supplies and industrial SMPS. P7 offers best-in-class 3 V VGS(th), ±0.5 V tolerance, protected gate, and an extensive product portfolio.
