The AD9959BCPZ consists of four direct digital frequency synthesizer (DDS) cores, each of which provides independent frequency, phase and amplitude control. This flexibility can be used to correct imbalances between signals caused by analog processing such as filtering, amplification, or PCB layout mismatches. Because all channels share a common system clock, they are inherently synchronized, supporting the synchronization of multiple devices.

The AD9959BCPZ uses advanced DDS technology to deliver high performance at low power consumption. The device integrates four high-speed 10-bit Dacs with superior broadband and narrowband SFDR performance. Each channel has a dedicated 32-bit frequency tuning word, 14-bit phase offset, and 10-bit output proportional multiplier.

Basic parameter

Resolution: 10 bit

Number of channels: 4 channels

Supply voltage - Minimum: 1.71V

Power supply voltage - Max: 1.89V

Operating temperature: -40 °C to + 85°C

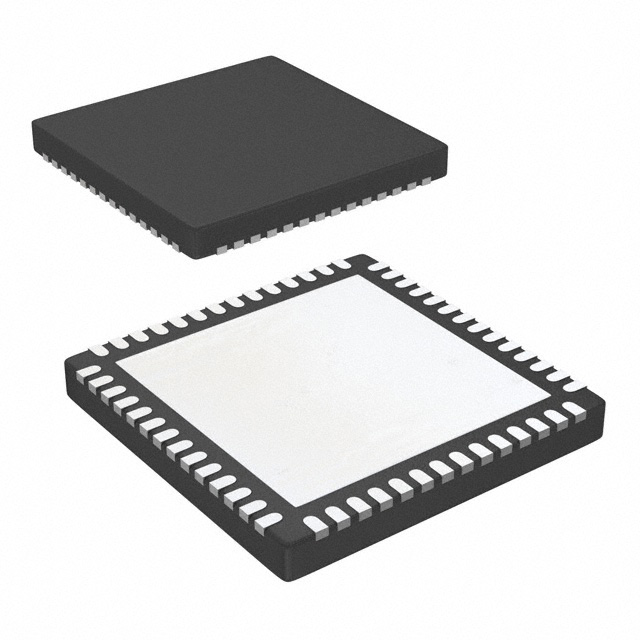

Package/housing: LFCSP-56

Applications

Agile local oscillator (LO) frequency synthesis

Phased array radar/sonar

Instrument and meter

Synchronous clock

RF source for AOTF (Acousto-Optic Tunable Filter)
