Infineon's new L5 low saturation voltage (V CE(sat)) TRENCHSTOP™ IGBT family is optimised for low switching frequencies from 50Hz to 20kHz. Carrier configuration optimisation of the innovative 55µ m TrenchStop ™5 thin-wafer technology allows for reduced conduction losses to low internal levels - 1.05V at 30A IGBTs and 1.10V at 75A IGBTs.

IKZ75N65EL5XKSA1 Product Attributes

Series: TrenchStop™ 5

IGBT Type: - Voltage

Voltage - Collector Breakdown (Max): 650 V

Current - Collector (Ic) (max): 100 A

Current - Collector Pulse (Icm): 300 A

Vce(on) at varying Vge, Ic (max): 1.35V @ 15V, 75A

Power - Max: 536 W

Switching Energy: 1.57mJ (on), 3.2mJ (off)

Input Type: Standard

Gate Charge: 436 nC

Td (On/Off) at 25°C: Value 120ns/275ns

Test Conditions: 400V, 75A, 23 Ohms, 15V

Reverse Recovery Time (trr): 59 ns

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Through Hole

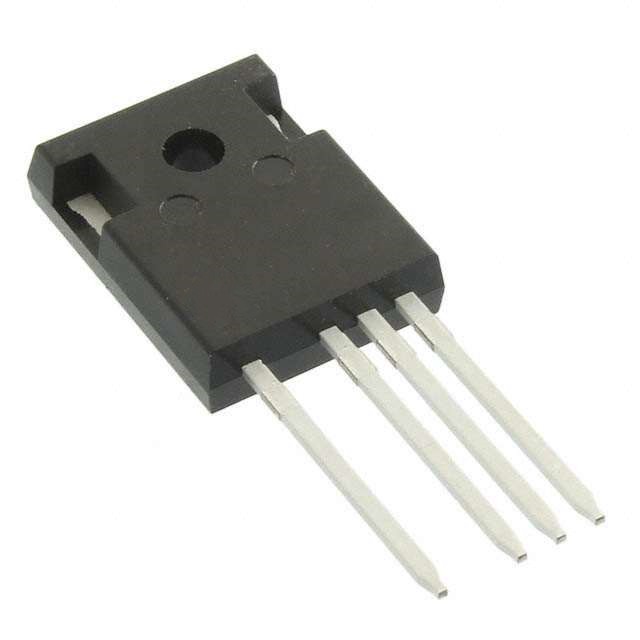

Package/Housing: TO-247-4

Supplier Device Package: PG-TO247-4

Base Product Number: IKZ75N65

Applications:

- Uninterruptible power supplies

- Solar photovoltaic inverters

- Welding machines
