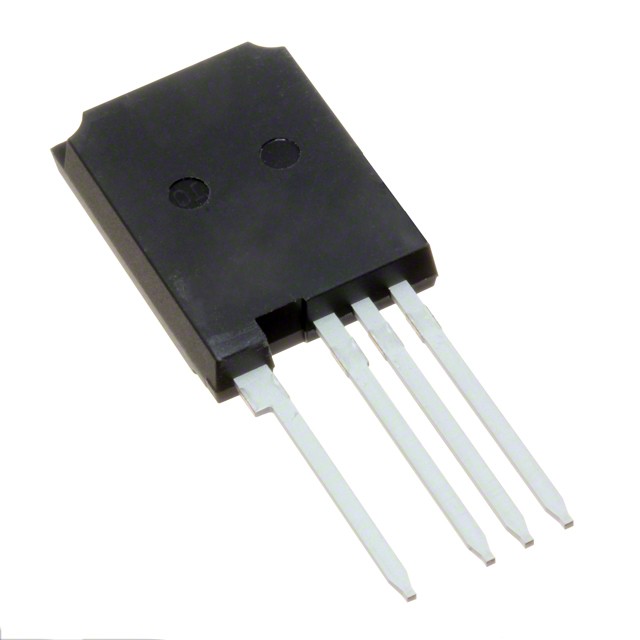

IKY40N120CH3XKSA1 1200 V, 50 A IGBT with anti-parallel diode in TO-247PLUS package.

Hard-switching 1200 V, 50 A IGBT3 in TO-247PLUS 4pin package. Higher current capability, improved thermal behaviour, extended C-E creepage are the key features of the TO-247PLUS package. The 4pin package configuration provides ultra-low inductance to the gate-emitter control loop with the 4pin package directly to the gate driver and allows for reduction the both of E on and E off losses amounting up to 20% lower total switching losses E ts.

Features

• VCE = 1200 V

• IC = 40 A

• Ultra-low loss switching losses due to Kelvin emitter pin package in combination with Highspeed3 technology

• High efficiency in hard switching and resonant topologies

• 10 µsec short circuit withstand time at Tvj = 175°C

• Easy parallel switching capability due to positive temperature coefficient in VCEsat

• Low EMI

• Low gate charge QG

• Very soft, fast recovery full current antiparallel diode

• Maximum junction temperature Tvjmax = 175°C

• Pb-free lead plating; RoHS compliant

Potential applications

• Industrial UPS

• Charger

• Energy storage

• Three-level solar string inverter
