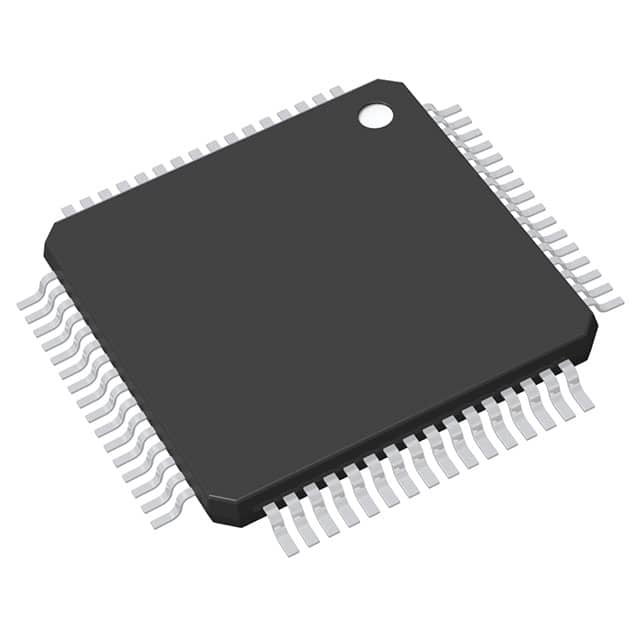

The R5F52607ADFM is a 32-bit microcontroller with excellent power efficiency and advanced touch capabilities for a variety of applications such as consumer electronics, industrial automation, building automation, and battery-powered products. This device is based on the RXv3 core and can achieve a performance of 355 CoreMark at a main frequency of 64MHz, featuring low power consumption and high energy efficiency.

The key features of the R5F52607ADFM microcontroller are as follows:

64MHz RXv3 core (355CoreMark)

Low power consumption (operating: 69μA/MHz, standby: 1μA)

Maximum 512KB code flash memory and 128KB SRAM

8KB data flash memory, which can provide data storage functions similar to EEPROM

Operating voltage range: 1.6V to 5.5V

Operating temperature range: -40°C to 85°C

High-speed on-chip oscillator, accuracy +/- 1.0%

Capacitive touch sensing unit (CTSU2SL

Safety protection (flash memory protection

UART, SPI, I2C

16-bit / 32-bit universal PWM timer, 16-bit low-power timer, 16-bit comparation-matching timer, 8-bit timer, RTC

12-bit A/D converter, 8-bit D/A converter, comparator, temperature sensor

64-LFQFP pin package

Thanks to the perfect combination of outstanding performance and functionality, the R5F52607ADFM microcontroller is suitable for applications such as household appliances, building and factory automation, as well as numerous application scenarios including smart locks, electric bicycles and mobile thermal printers.
