The R5F52616ADFL is A microcontroller launched by Renesas, featuring an outstanding energy efficiency ratio, advanced touch functionality and powerful safety characteristics. Based on the RXv3 core, it has A main frequency of 64MHz, with an operating current as low as 69μA/MHz and a standby current of only 1μA. This chip supports SNOOZE mode, allowing peripherals to run in standby mode to reduce power consumption.

The following are the main features of the R5F52616ADFL microcontroller:

64MHz RXv3 core (355CoreMark)

Low power consumption (operating: 69μA/MHz, standby: 1μA)

Maximum 512KB code flash memory and 128KB SRAM

8KB data flash memory, which can provide data storage functions similar to EEPROM

Operating voltage range: 1.6V to 5.5V

Operating temperature range: -40°C to 85°C or -40°C to 105°C

High-speed on-chip oscillator, accuracy +/- 1.0%

Capacitive touch sensing unit (CTSU2SL

Safety protection (RSIP-E11A, flash memory protection)

Full-speed USB (host/function), CAN FD, UART, SPI, I2C

16-bit / 32-bit universal PWM timer, 16-bit low-power timer, 16-bit comparation-matching timer, 8-bit timer, RTC

12-bit A/D converter, 8-bit D/A converter, comparator, temperature sensor

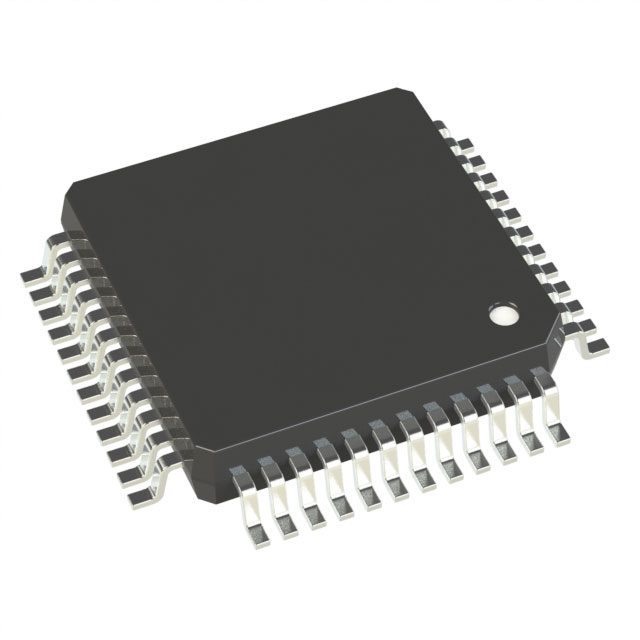

48-LFQFP pin package

Typical applications

The R5F52616ADFL microcontroller is suitable for consumer electronics, industrial automation, battery-powered devices (such as smart locks and electric bicycles), and scenarios that require low-power touch functionality.
