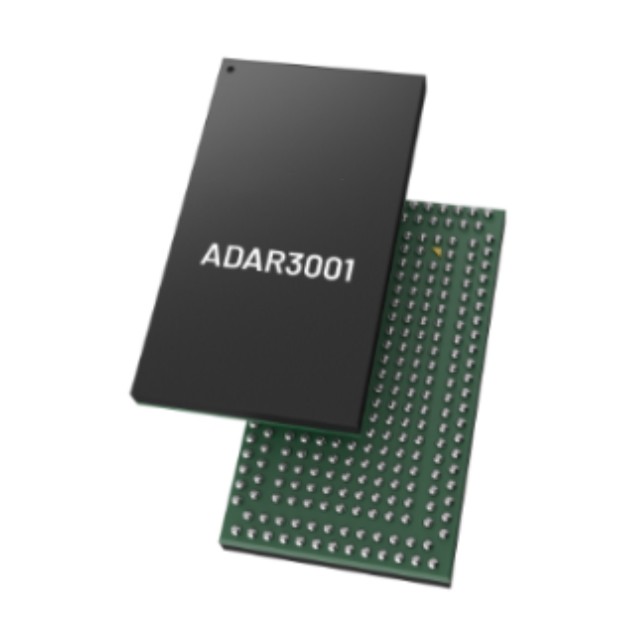

ADAR3001ABCZ is a 27.5 GHz to 31 GHz Ka-band beamformer in a BGA package, featuring a 4-beam/16-channel architecture that can be flexibly configured for transmit (Tx) or receive (Rx) mode. It is suitable for high-frequency systems such as satellite communications, 5G millimetre-wave base stations, and phased-array radars.

ADAR3001ABCZ Features

Frequency range: 27.5 GHz to 31 GHz

Low power consumption (<12 mW per channel)

4-beam/16-channel beamforming integrated circuit (IC)

Configurable for transmit or receive operations

Programmable delay and beam control step attenuators

Internal memory for storing beam positions

User-programmable timing controller for fast and efficient beam state selection

Update, reset, and beam cancellation commands issued via pointer or SPI

Supports beam hopping and grating scanning

Integrated ADC for the following components:

Temperature sensor

General-purpose analogue input

Programmable bias mode

16-pin parallel addressability via 4-wire SPI interface

User-friendly BGA packaging

ADAR3001ABCZ Parameters

Operating frequency: 27.5 GHz to 31 GHz

Number of channels: 16 channels (4 beams)

Power consumption: <12 mW per channel

Control interface: SPI (4-wire)

Package: BGA

Function mode: Transmit (Tx)/Receive (Rx) configurable

Typical applications

Satellite communication: Ka-band phased array antenna beamforming.

5G millimetre-wave base stations: Dynamic beamforming and user tracking.

Radar systems: Military/civilian phased array radar target detection.

Test equipment: High-frequency signal simulation and beam analysis.
