Trade Name:Sensor Signal Conditioners
Brand:Renesas
Particular Year:25+

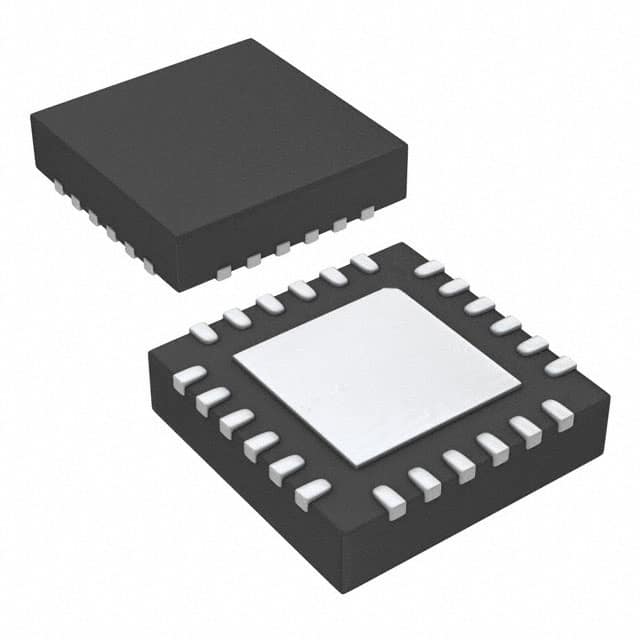

Package:VFQFPN-24
Delivery Date:New and original
Stock: 2000pcs
The ZSSC4175DE4R is an automotive thermocouple sensor signal conditioner (Renesas) designed to improve fuel economy and reduce emissions. The following are its key features:
Two differential thermocouple element inputs and an on-chip temperature sensor can be used for cold junction compensation and temperature output
Operating temperature range: -40 °C to 150 °C
Accuracy: Up to 5K at the hot end at 1000 °C
Support N-type thermocouples
NVM memory for configuring, calibrating data, as well as configurable measurement and adjustment functions
The SENT output complies with SAE J2716 JAN2010 (SENT Rev.3) and APR2016 (SENT Rev.4) standards
Support the output of one or more thermocouple signals and product identification through a single SENT interface connection
The end-of-line calibration process of the production line can minimize production costs to the greatest extent
No external finishing or components are required
Complies with the AEC-Q100 grade 0 standard
Enhanced diagnostic function of the sensor module
In addition, the ZSSC4175DE4R supports differential thermocouple input and is equipped with an internal cold junction compensation sensor, enabling high-precision measurements within the range of -40°C to 150°C (with an accuracy of 5K at 1000°C hot junction). This device digitally compensates for offset, sensitivity, temperature drift and nonlinearity through a 16-bit RISC microcontroller, eliminating the need for external equipment or laser adjustment and reducing assembly costs.
Typical applications
ZSSC4175DE4R is mainly used in automotive exhaust systems. By precisely measuring the temperature of exhaust gases, it optimizes engine management, reduces harmful emissions and enhances fuel economy.
Model
Brand
Package
Quantity
Describe
Renesas
VFQFPN-24
2000
Automotive Sensor Signal Conditioner for a Single Resistive Bridge with SENT or I2C Output
Renesas
VFQFPN-24
2000
Automotive Sensor Signal Conditioner for Dual Resistive Bridges with SENT
Renesas
VFQFPN-24
2000
Automotive Sensor Signal Conditioner for a Single Resistive Bridge with SENT or I2C Output
Renesas
WAFER
2000
Automotive pressure sensor signal conditioning chips (QM, bare die) with SENT or I2C output
Renesas
WAFER
2000
Automotive pressure sensor signal conditioning chips with SENT or I2C output (ASIL C, bare die)
Renesas
QFN20
2000
Automotive pressure sensor signal conditioning chips with SENT or I2C output (ASIL C, QFN20L)
Renesas
SOP8
2000
Automotive pressure sensor signal conditioning chips with SENT output (ASIL C, SOP8)
Renesas
SOP8
2000
Automotive pressure sensor signal conditioning chips (QM, SOP8) with SENT output
