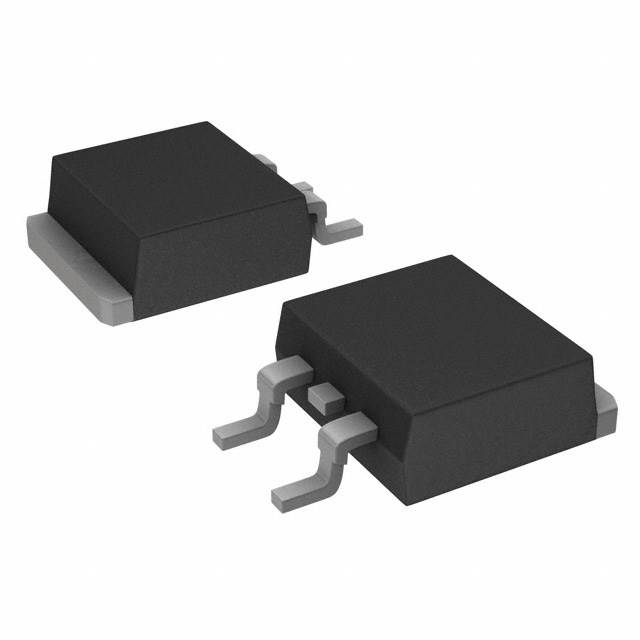

IKB15N60TATMA1 600 V, 15 A hard-switching TRENCHSTOP™ third-generation IGBTs are co-packaged with fully rated continuity diodes in a TO263 D2Pak package, combining trench gate and field termination concepts to significantly improve the static and dynamic performance of the device.The IGBTs are combined with soft-recovery emitter-control diodes to further minimise turn-on losses. Switching and conduction losses are optimised for maximum efficiency.

Characterisation

Extremely low VCEsat drop for reduced conduction losses

Low switching losses

Positive temperature coefficient of VCEsat for easy parallel switching capability

Very soft, fast recovery anti-parallel emitter control diodes

High robustness and temperature stability

Low EMI emissions

Low gate charge

Very compact parameter distribution

IKB15N60TATMA1 Product Attributes

IGBT Type: Trench Field Cutoff

Voltage - Collector Breakdown (max): 600 V

Current - Collector (Ic) (max): 30 A

Current - Collector pulse (Icm): 45 A

Vce(on) (max) at varying Vge, Ic: 2.05V @ 15V, 15A

Power - Max: 130 W

Switching Energy: 570µJ

Input Type: Standard

Gate Charge: 87 nC

Td (On/Off) Value at 25°C: 17ns/188ns

Test Conditions: 400V, 15A, 15 Ohms, 15V

Reverse Recovery Time (trr): 34 ns

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Surface Mount

Package/Housing: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package: PG-TO263-3-2
