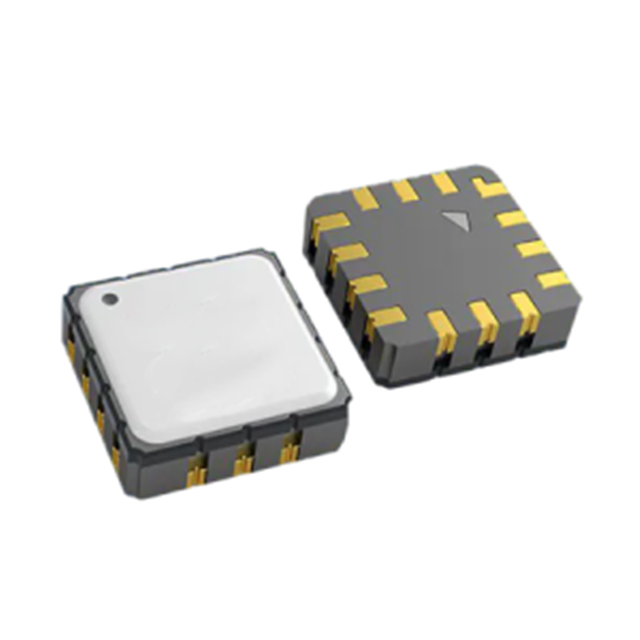

The ADXL251WXCSZ is a dual-axis integrated satellite sensor. Users can choose the g range. It complies with the PSI5 2.1 airbag sub-standard and is backward compatible with the PSI5 1.3 standard. Its main features include:

User-selectable sensor g ranges: ± 60g, ± 120g, ± 240g, ± 480g

Dual-axis sensors for the X-axis and Y-axis

Comply with the airbag sub-standard of PSI5 2.1 version

Synchronous operation

PSI5-P10P-500/3L and others

Daisy chain operation for two-way communication

Application-level Serial Peripheral Interface (SPI) communication

Optional 16-bit or 10-bit sensor data is available

The g range and time slot of each axis can be programmed independently

Independently identify the faults of each axis

Fully differential analog signal chain

0.25 μs data interpolation program

User-defined continuous automatic zeroing operation

It has strong resistance to electromagnetic interference (EMI) and radio frequency interference (RFI)

SPI mode power supply voltage: 3.3V and 5V, +5%

The power supply voltage range of PSI5 mode: 4.5V to 11.0V

Meet the requirements of automotive applications

The ADXL251WXCSZ (X-axis/Y-axis) can provide low-cost solutions for major sensor application areas such as forward and side impact airbags, satellite sensors, and electronic control units (ECUs). The acceleration data will be sent to the control module through the digital dual-wire current loop PSI5 bus. Communication via the SPI bus is also applicable to ECU applications. The ADXL251WXCSZ is available in a 4 mm × 4 mm LFCSP package and can operate within the entire automotive-grade temperature range (-40 °C to +125°C).
