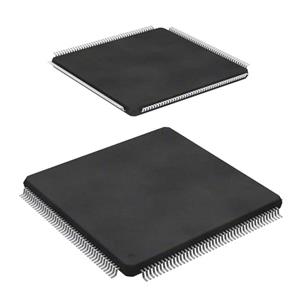

The SPC564B64L7C9E0X is a next-generation microcontroller built on the Power Architecture Embedded category. The SPC564B64L7C9E0X operates at a speed of up to 120 MHz, offering high-performance processing optimized for low power consumption. It also takes advantage of the available development infrastructure of current power architecture devices and is supported by software drivers, operating systems and configuration codes to assist users in implementation.

Main specifications

Core processor: e200z4d

Kernel specification: 32-bit

Speed: 120MHz

Connection capabilities: CANbus, LINbus, SPI, UART/USART

Peripheral devices: DMA, POR, PWM, WDT

I/O count: 147

Program storage capacity: 1.5MB (1.5M x 8)

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 128K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 27x10b, 5x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Encapsulation: 176-LQFP

Application scenarios

SPC564B64L7C9E0X is widely used in the field of automotive electronics:

Body control module (doors/Windows/seats) : Supports LIN bus connection to sensors and CAN bus connection to the central gateway, and responds in real time to anti-jamming signals (<50ms).

Intelligent lighting system: Generates 8-channel PWM through a 16-bit eMIOS module to drive matrix LED headlights (accuracy ±0.5mm).
