Trade Name:32-Bit Microcontrollers For Automotive
Brand:ST
Particular Year:25+
Package:144-LQFP
Delivery Date:New and original
Stock: 2000pcs

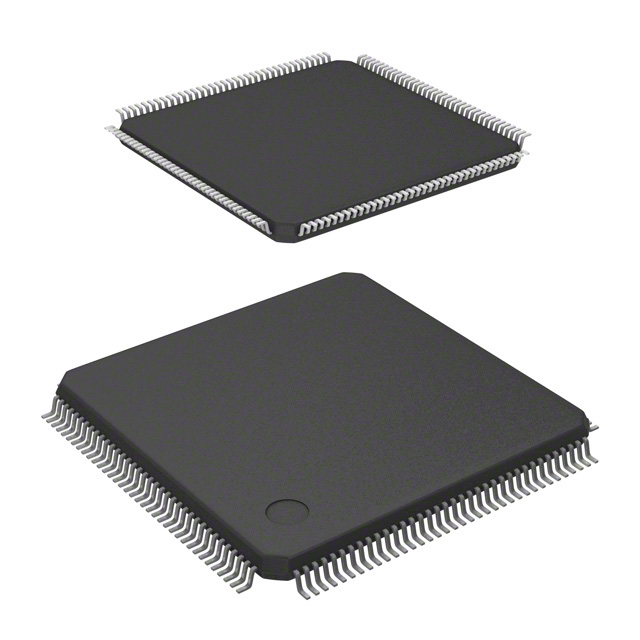

The SPC560B54L5B4E0X automotive microcontroller adopts the e200z0h CPU core, with a main frequency as high as 48MHz. It supports variable length coding (VLE) technology to enhance code density. This device is equipped with 768KB of code flash memory with ECC and 64 KB of data flash memory, along with 64K SRAM, meeting the requirements of complex computing.
Technical parameters
Core processor: e200z0h
Kernel specification: 32-bit
Speed: 48MHz
Connection capabilities: CANbus, I2C, LINbus, SCI, SPI, UART/USART
Peripheral devices: DMA, LVD, POR, PWM, WDT
I/O number: 121
Program storage capacity: 768KB (768K x 8)
Program memory type: Flash memory
EEPROM capacity: -
RAM size: 64K x 8
Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V
Data converter: A/D 53x10/12b
Oscillator type: Internal
Operating temperature: -40°C to 105°C (TA)
Grade: Automotive grade
Qualification: AEC-Q100
Installation type: Surface mount type
Encapsulation: 144-LQFP
In addition, the SPC560B54L5B4E0X supports a single power supply of 5V or 3.3V, and is equipped with a 16 MHz fast external crystal oscillator and a 32 kHz slow crystal oscillator. Precise time management is achieved through software-controlled clock. Youdaoplaceholder0 SPC560B54L5B4E0X is suitable for scenarios such as automotive electronics and industrial control that have high requirements for real-time performance and reliability.
Model
Brand
Package
Quantity
Describe
ST
100-ETQFP
2000
32-bit Power Architecture MCU for general automotive applications
ST
176-LQFP
2000
32-bit Power Architecture MCU for automotive body and gateway applications
ST
256-LBGA
2000
32-bit Power Architecture MCU for automotive body and gateway applications
ST
256-LBGA
2000
32-bit Power Architecture MCU for automotive body and gateway applications
ST
176-LQFP
2000
32-bit Power Architecture MCU for automotive body and gateway applications
ST
64-LQFP
2000
32-bit Power Architecture MCU for automotive chassis and safety applications
