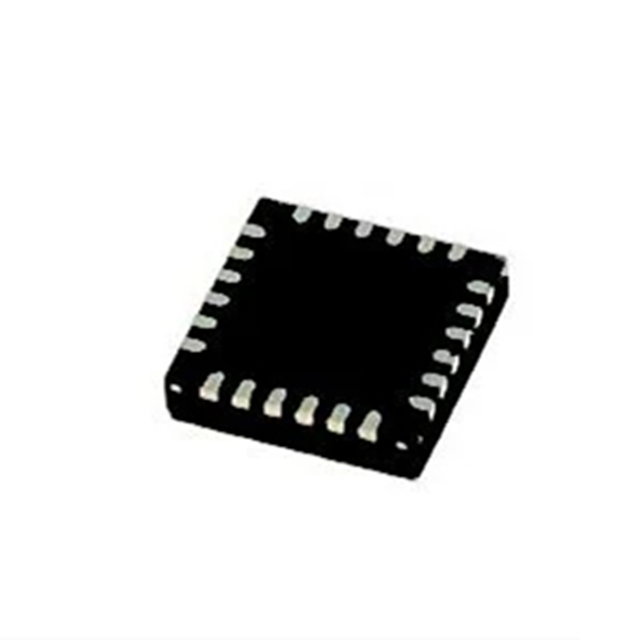

ZSSC4151AE1C is an automotive sensor signal conditioning integrated circuit launched by (Renesas), mainly used for high-precision amplification and correction of resistance bridge sensor signals. The ZSSC4151AE1C can run algorithms through an internal 16-bit RISC microcontroller to achieve sensor deviation, sensitivity, temperature drift and nonlinearity correction, and supports digital interfaces (such as I²C or ZACwire™) for calibration parameter transmission.

Key features

Digital compensation is provided for sensor offset, sensitivity, temperature drift and nonlinearity

It can be adjusted to almost all full-bridge or half-bridge sensors

The analog gain is 200, and the digital zoom option supports sensors with a range as low as 1mV/V

Output options: Ratio 12-bit analog voltage output (e.g., 5-95% or 10-90%), with freely adjustable clamping or ZACwire™ digital single-wire interface (OWI)

Temperature compensation: Internal or external diodes, external series resistance of the bridge or RTD

The sensor is biased by internal voltage

All module pins offer high voltage up to 40V and reverse polarity protection: VDDE, VSSE and AOUT

Maximum power supply current: 7mA

AOUT short-circuit protection

Traceability is achieved through user-defined registers

Application field

ZSSC4151AE1C is mainly applied in the automotive field, such as in scenarios like body vibration monitoring and displacement detection, which can enhance the accuracy and stability of sensor signals. ‌
