Service Telephone:86-755-83294757
Trade Name:Sensor Signal Conditioners
Brand:Renesas
Particular Year:25+
Package:WAFER
Delivery Date:New and original
Stock: 2000pcs

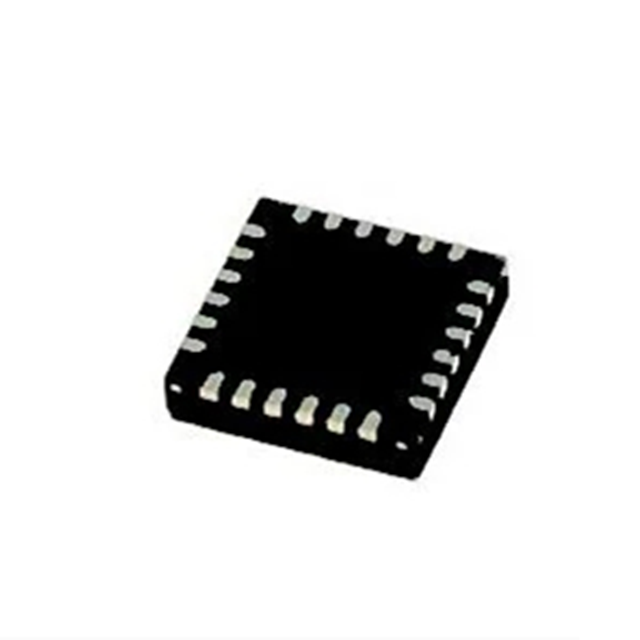

ZSSC4151AE1B is an automotive sensor signal conditioning integrated circuit launched by (Renesas), mainly used for high-precision amplification and signal correction for resistance bridge sensors. The following are its core features:
Digital compensation is provided for sensor offset, sensitivity, temperature drift and nonlinearity
It can be adjusted to almost all full-bridge or half-bridge sensors
The analog gain is 200, and the digital zoom option supports sensors with a range as low as 1mV/V
Output options: Ratio 12-bit analog voltage output (e.g., 5-95% or 10-90%), with freely adjustable clamping or ZACwire™ digital single-wire interface (OWI)
Temperature compensation: Internal or external diodes, external series resistance of the bridge or RTD
The sensor is biased by internal voltage
All module pins offer high voltage up to 40V and reverse polarity protection: VDDE, VSSE and AOUT
Maximum power supply current: 7mA
AOUT short-circuit protection
Traceability is achieved through user-defined registers
The ZSSC4151AE1B can be adjusted to almost all types of resistive bridge sensors. The measured values are provided by an analog voltage output and an optional digital I2C or ZACwire interface, also known as a single-wire interface (OWI).
Application scenarios
The ZSSC4151AE1B is compatible with the vast majority of resistance bridge sensors, including pressure, displacement, temperature and other types of sensors. The output mode supports analog voltage and digital interface (I²C/ZACwire™), facilitating integration with microcontrollers or other systems.
Model
Brand
Package
Quantity
Describe
Renesas
VFQFPN-24
2000
Automotive Sensor Signal Conditioner for a Single Resistive Bridge with integrated LIN PHY
