ZSSC4169DE5T is an automotive sensor signal conditioner launched by (Renesas), manufactured using CMOS technology. The ZSSC4169DE5T is mainly applied in the automotive field. Through high-precision amplification and sensor-specific correction, it processes signals from differential bridge sensors and supports SENT (Single-edge Time Coding) or I²C output.

Core features

The differential bridge sensor input and on-chip or external temperature sensor can be selected to adjust the sensor input signal and/or temperature output

Extended temperature measurement options (i.e., internal sensor, external diode)

SENT interface; OWI or I²C options for calibration

Digital compensation is provided for the offset, gain, high-order nonlinearity and temperature coefficient of the input signal of the sensor under test

Operating temperature range: -40°C to 150°C

Accuracy: ±0.50% FSO from -40°C to 125°C

NVM memory is used to store configuration data, user-configurable measurements, adjustment functions, and data selected by the user

Technical parameters

Power supply voltage: 4.75V to 5.25V

Overvoltage and reverse polarity protection up to ±18V

Bridge sensor input range: 1 to 800 mV/V

The ADC resolution of the bridge sensor signal: 14 bits

Output resolution: 12 bits via the SENT interface

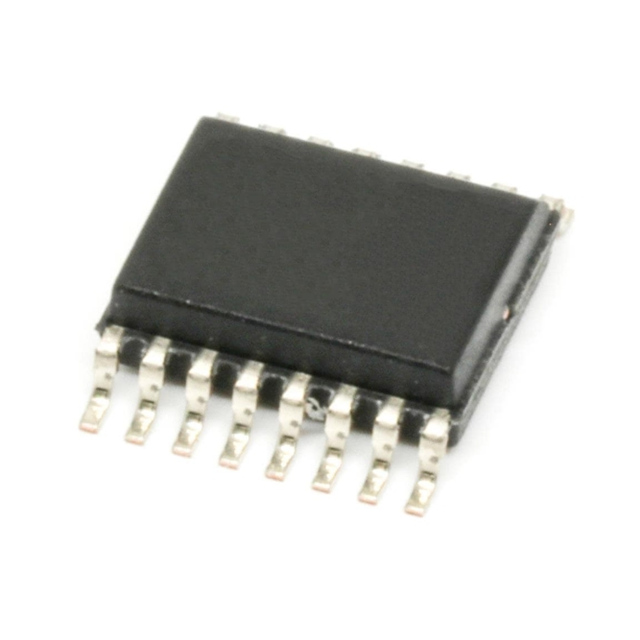

Packaging: 16-TSSOP

Typical applications

Fluid brake pressure Sensing (PV

Hydraulic sensing (for example, steering systems with hydraulic steering mounts)

Pneumatic pressure sensing (e.g., air braking system; Pneumatic shock absorber
