ZSSC4169DE4R is an automotive sensor signal conditioning device produced by (Renesas), mainly used for processing differential bridge sensor signals and supporting SENT (Single-edge Time Coding) or I2C output. The following are its core features:

The differential bridge sensor input and on-chip or external temperature sensor can be selected to adjust the sensor input signal and/or temperature output

Extended temperature measurement options (i.e., internal sensor, external diode)

SENT interface; OWI or I²C options for calibration

Digital compensation is provided for the offset, gain, high-order nonlinearity and temperature coefficient of the input signal of the sensor under test

Operating temperature range: -40°C to 150°C

Accuracy: ±0.50% FSO from -40°C to 125°C

NVM memory is used to store configuration data, user-configurable measurements, adjustment functions, and data selected by the user

Technical parameters

Power supply voltage: 4.75V to 5.25V

Overvoltage and reverse polarity protection up to ±18V

The input range of the column bridge sensor is 1 to 800 mV/V

The ADC resolution of the <s:1> bridge sensor signal: 14 bits

Youdaoplaceholder3 Output resolution: 12 bits via SENT interface

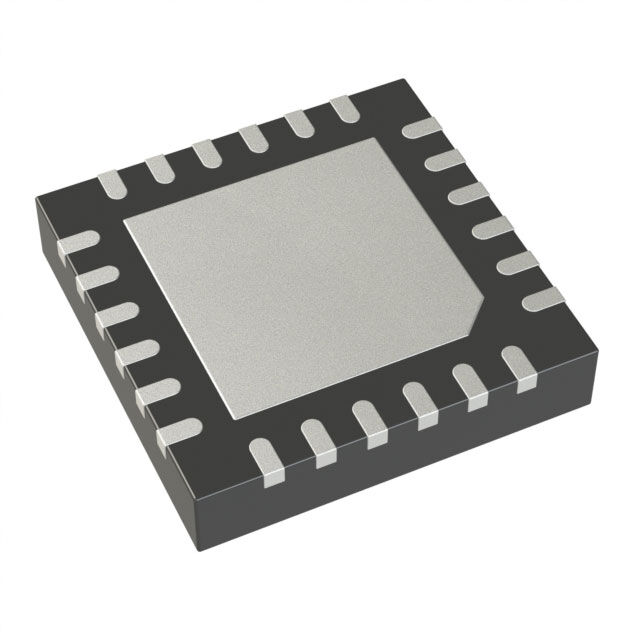

Encapsulation: 24-QFN (4 x 4 mm;) Wettability side

Typical applications

Throttle fluid braking pressure sensor (PV

"Hydraulic sensing (e.g., steering system with hydraulic steering bracket)

Pneumatic pressure sensing (e.g., air braking system;) Pneumatic shock absorber

In conclusion, the ZSSC4169DE4R and calibration equipment can communicate digitally, thus significantly reducing noise sensitivity. Digital calibration helps maintain low assembly costs as no external equipment or finishing is required. The ZSSC4169DE4R has been optimized for automotive environments through overvoltage and reverse polarity protection circuits, excellent electromagnetic compatibility, and multiple diagnostic functions.
