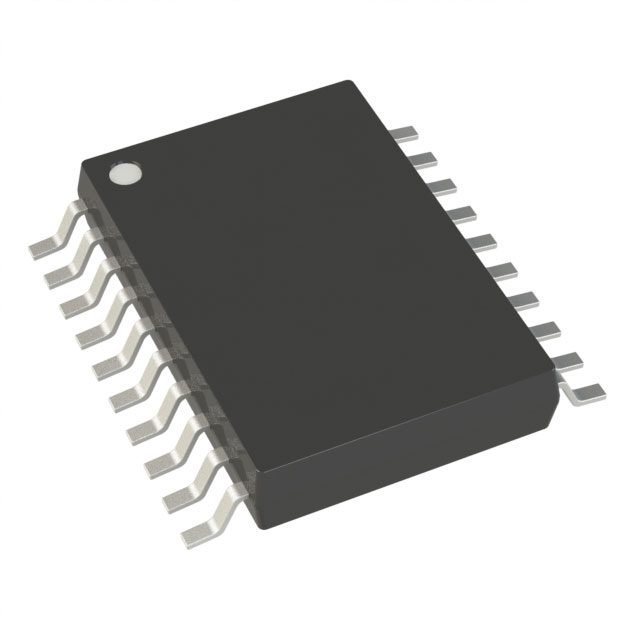

The MSPM0G3107SDGS20R mixed-signal microcontroller, an Arm 32-bit Cortex-M0+ CPU with a memory protection unit up to 80MHz, supports an operating temperature range of -40°C to 125°C and operates from a 1.62V to 3.6V supply voltage. The MSPM0G3107SDGS20R offers up to 128KB of embedded Flash program memory with built-in error correction code (ECC) and up to 32KB of SRAM with ECC and hardware parity options.

Product Details:

Model: MSPM0G3107SDGS20R

Package: VSSOP-20

Type: 32-bit Microcontroller - MCU

Applications:

Motor Control

Household Appliances

Uninterruptible Power Supplies and Inverters

Test and Measurement

Factory Automation and Control

Industrial Transport

Communication Modules

MSPM0G3107SDGS20R Specifications:

Product Category: ARM Microcontroller - MCU

Mounting Style: SMD/SMT

Package / Case: VSSOP-20

Core: ARM Cortex M0+

Program Memory Size: 128 kB

Data Bus Width: 32 bit

ADC Resolution: 2 x 12 bit

Maximum Clock Frequency: 80 MHz

Number of inputs/outputs: 28 I/O

Data RAM size: 32 kB

Supply voltage - min: 1.62 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 125 °C

Interface types: CAN, I2C, SPI, UART

Number of ADC channels: 11 Channel

Number of timers/counters: 7 Timer

Operating Supply voltage: 1.35 V
