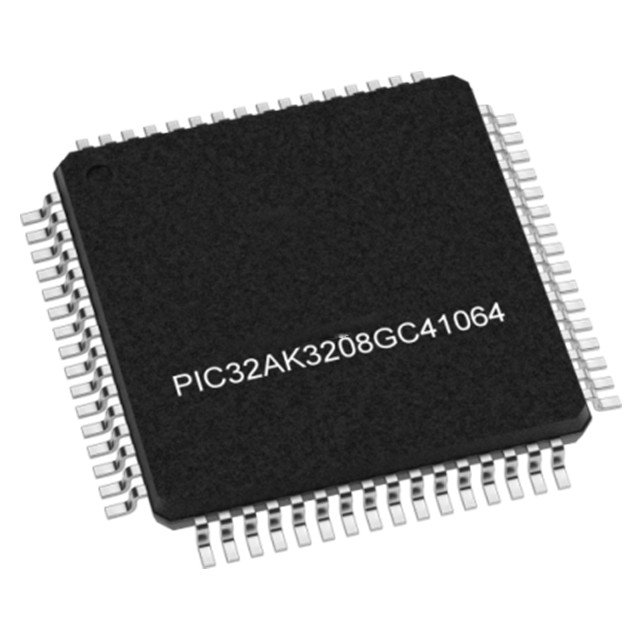

The PIC32AK3208GC41064T-I/PT is a high-performance microcontroller featuring a 200MHz 32-bit CPU core and supporting double-precision floating-point operations (DP-FPU), making it suitable for mathematics-intensive applications.

The PIC32AK3208GC41064T-I/PT features integrated high-speed analog peripherals, a 12-bit ADC up to 40Msps, a high-speed 5ns comparator, and a 100MHz ggain bandwidth product (GBWP) operational amplifier. In addition, it also includes integrated hardware security and safety features, such as error code correction (ECC) on flash memory and RAM, built-in memory self-check (MBIST), I/O integrity monitor, clock monitoring, and immutable secure boot and flash memory access control.

Technical parameters

Core processor: PIC

Kernel specification: 32-bit

Speed: 200MHz

Connection capabilities: I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 49

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 8K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 3.6V

Data converter: A/D 22x12b SAR; D/A 3x12b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 64-TQFP (10x10)

Typical applications

Automobile

"Industry

Consumer electronic products

Medical care
