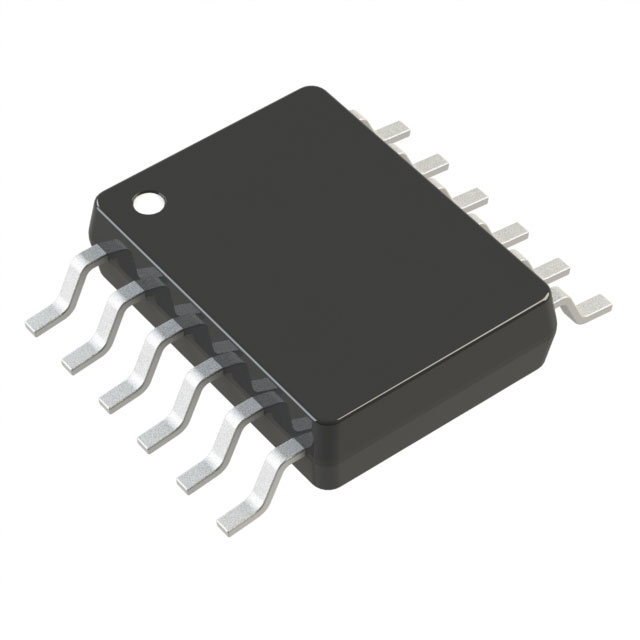

The LTC2644CMS-L8 is a dual-channel 8-bit PWM-to-voltage output DAC featuring an integrated high-accuracy, low-drift, 10ppm/°C reference, built into a 12-pin MSOP package. This device features a rail-to-rail output buffer and ensures monotonic characteristics.

Core features

Delay-free PWM to voltage conversion

The voltage output can be updated and stabilized within 8μs

PWM input frequency ranging from 100kHz to 30Hz

±2.5LSB maximum INL; ±1LSB maximum DNL (LTC2644-12)

Ensure monotonicity

Internal or external references with selectable pins

Power supply range: 2.7V to 5.5V

Input voltage range: 1.71V to 5.5V

Low power: 2.7mA (at 3V), <1μA (when power is off

Guaranteed operating temperature range: -40 °C to 125°C

12-pin MSOP package

In addition, the LTC2644CMS-L8 can measure the PWM input signal, period and pulse width, and update the voltage output DAC after each corresponding PWM input rising edge.

Application field

Digital calibration

Repair and adjustment

Level setting

Process control and industrial automation

Instrument

Automobile
