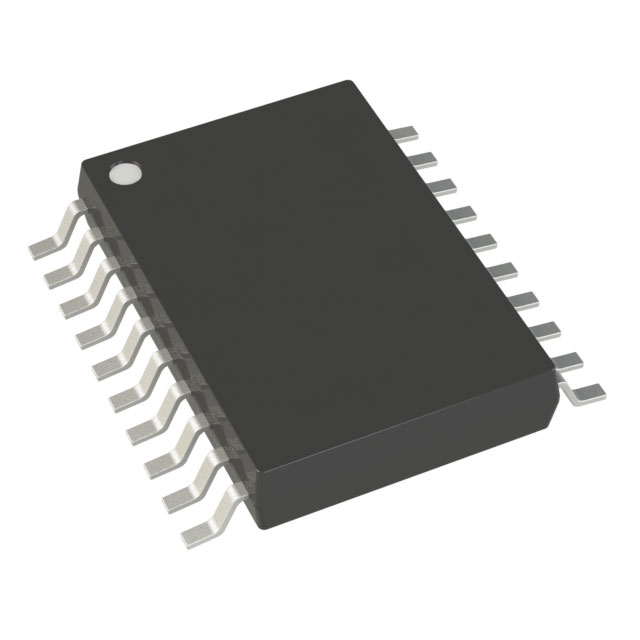

The LTC2656IF-L12 is an 8-channel 12-bit rail-to-rail DAC with a precise integration benchmark. This DAC features an integrated high-performance, rail-to-rail output buffer and ensures monotonic characteristics. The LTC2656IF-L12 features a 2.5V full-scale output and an integrated 10ppm/ºC reference, and operates on a 2.7V to 5.5V power supply. Each DAC can also operate with an external reference, which is responsible for setting the full-scale output of the DAC to twice the voltage of the external reference.

Main features

Accurate maximum value reference of 10ppm/ºC

Maximum INL error: ±4LSB (at 16 bits)

Ensure monotony throughout the entire temperature range

Selectable internal or external benchmarks

2.7V to 5.5V power supply range (LTC2656-L)

Integrated reference buffer

Ultra-low crosstalk between Dacs (<1nV•s)

Power on and reset to zero scale/intermediate scale

Asynchronous LDAC update pins

20-pin heat resistance enhanced TSSOP package

Application field

Ltc2656if-l12 is widely used in industrial control, communication and other fields, such as ‌

Mobile communication

Process control and industrial automation

Instrument

Automatic testing equipment

Automobile
