Trade Name:Digital to Analog Converters (DAC)
Brand:Maxim
Particular Year:25+

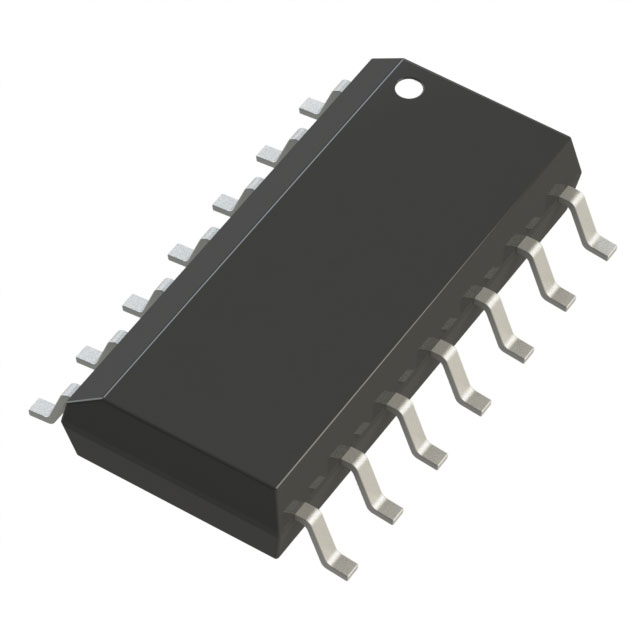

Package:SOIC-14
Delivery Date:New and original
Stock: 3000pcs
The MAX5717AGSD is a serial input, buffer-free, 16-bit voltage-output unipolar digital-to-analog converter (DAC) with an integrated feedback resistor that supports bipolar operation in conjunction with an external operational amplifier. This DAC features low spike pulse energy, low noise, strict bipolar resistance matching and high precision. The MAX5717AGSD has the following technical parameters:
Number of digits: 16
Number of digital-to-analog converters: 1
Establishment time: 1.5µs (typical value)
Output type: Voltage-Unbuffered
Differential output: None
Data interfaces: SPI, DSP
Reference type: External
Voltage - Power supply, analog: 4.5V to 5.5V
Voltage - power supply, number: 4.5V to 5.5V
INL/DNL (LSB) : ±0.25, ±0.125
Architecture: R-2R
Operating temperature: -40°C to 105°C
Packaging/Housing: 14-SOIC
Application field
Automatic testing equipment
Automatic tuning
Communication system
Data acquisition system
Gain and offset regulation
Portable instrument
Process control and servo loop
Programmable voltage and current source
Testing and measuring equipment
