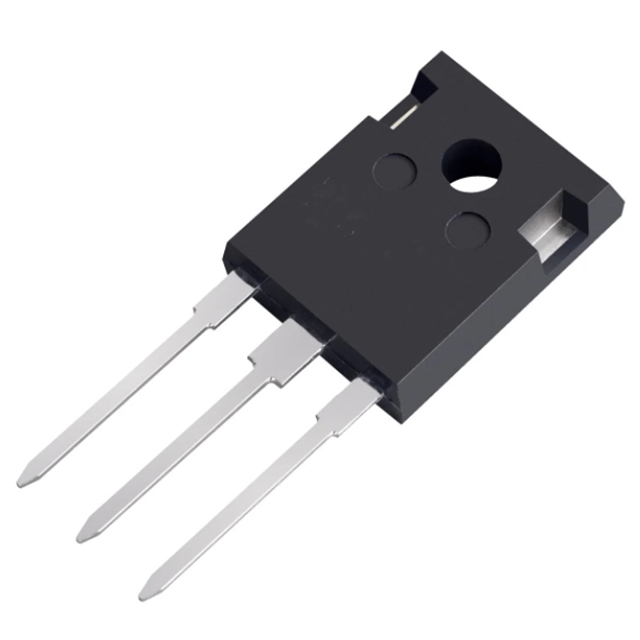

The NTHL040N65S3HF is an N-channel power MOSFET manufactured by onsemi, featuring SUPERFET III and FRFET technology, with a drain-source voltage of 650V and a continuous drain current of 65A ‌‌. The on-resistance of the device is 40mΩ, operating temperature range is -55 ° C to +150 ° C, suitable for a wide range of high-power application scenarios ‌.

The NTHL040N65S3HF has the following key parameters:

FET type: N channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 650 V

Current at 25°C - Continuous drain (Id) : 65A (Tc)

Driving voltage (maximum Rds On, minimum Rds On) : 10V

The on-resistance (maximum value) at different ids and Vgs: 40 milliohms @ 32.5A, 10V

Vgs(th) (maximum value) at different ids: 5V@2.1mA

Gate charge (Qg) (maximum value) at different Vgs: 159 nC@10 V

Vgs (maximum value) : ±30V

Input capacitance (Ciss) (maximum value) at different Vds: 5945 pF @ 400 V

FET function: -

Power dissipation (maximum value) : 446W (Tc)

Operating temperature: -55°C to 150°C (TJ)

Installation type: Through hole

Packaging/Shell: TO-247-3

Application field

The NTHL040N65S3HF, with its high performance parameters, is suitable for a wide range of applications that require high voltage and high current processing, such as power management, motor control, inverters, LED drivers, etc. ‌. Its low on-resistance and fast switching characteristics make it perform well in high-performance electronic devices.
