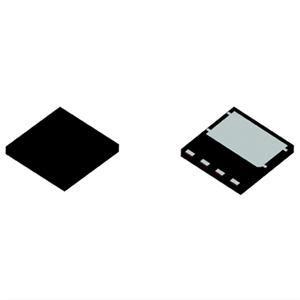

The NTMT125N60S5H is a high-performance MOSFET product launched by onsemi, which is particularly suitable for server and telecommunication systems. The SUPERFET V MOSFET FAST series has extremely low switching losses in hard-switching applications, which helps to maximize the system efficiency. The TDFN4 package is an ultra-thin SMD package that offers outstanding switching performance by providing a Kelvin source configuration and a low parasitic source inductance.

Main specifications

FET type: N channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 600 V

Current at 25°C - Continuous drain (Id) : 22A (Tc)

Driving voltage (maximum Rds On, minimum Rds On) : 10V

The on-resistance (maximum value) at different ids and Vgs: 125 milliohms @ 11A, 10V

Vgs(th) (maximum value) at different ids: 4.3V@2.1mA

Gate charge (Qg) (maximum value) at different Vgs: 37.1N@10 V

Vgs (maximum value) : ±30V

Input capacitance (Ciss) (maximum value) at different Vds: 2037 pF @ 400 V

FET function: -

Power dissipation (maximum value) : 152W (Tc)

Operating temperature: -55°C to 150°C (TJ)

Installation type: Surface mount type

Supplier device package: 4-TDFN (8x8)

Application scenarios

The NTMT125N60S5H MOSFET is mainly applied in server and telecommunication systems, especially excelling in power management with high energy efficiency requirements.
