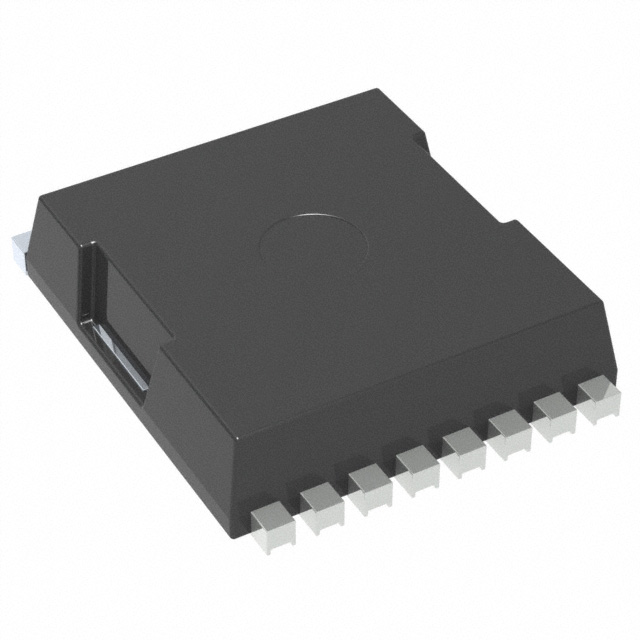

SUPERFET V MOSFET (NTBL125N60S5H) is the fifth-generation high-voltage super junction (SJ) MOSFET series product of onsemi. SUPERFET V provides first-class FOM (RDS (ON) ·QG and RDS (ON) ·EOSS), which not only improves the efficiency of heavy loads but also that of light loads. The NTBL125N60S5H device offers design advantages by reducing conduction and switching losses, while supporting an extreme MOSFET DVD /dt rating of 120 V/ns. Therefore, the SUPERFET V MOSFET FAST series helps to maximize the system efficiency and power density.

Technical Specification

FET type: N channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 600 V

Current at 25°C - Continuous drain (Id) : 22A (Tc)

Driving voltage (maximum Rds On, minimum Rds On) : 10V

The on-resistance (maximum value) at different ids and Vgs: 125 milliohms @ 11A, 10V

Vgs(th) (maximum value) at different ids: 4.3V@2.1mA

Gate charge (Qg) (maximum value) at different Vgs: 37.1N@10 V

Vgs (maximum value) : ±30V

Input capacitance (Ciss) (maximum value) at different Vds: 2036 pF @ 400 V

FET function: -

Power dissipation (maximum value) : 152W (Tc)

Operating temperature: -55°C to 150°C (TJ)

Installation type: Surface mount type

Supplier device packaging: 8-HPSOF

Application field

• Telecommunication/server power supply

• Electric vehicle charger/UPS/solar energy/industrial power supply
