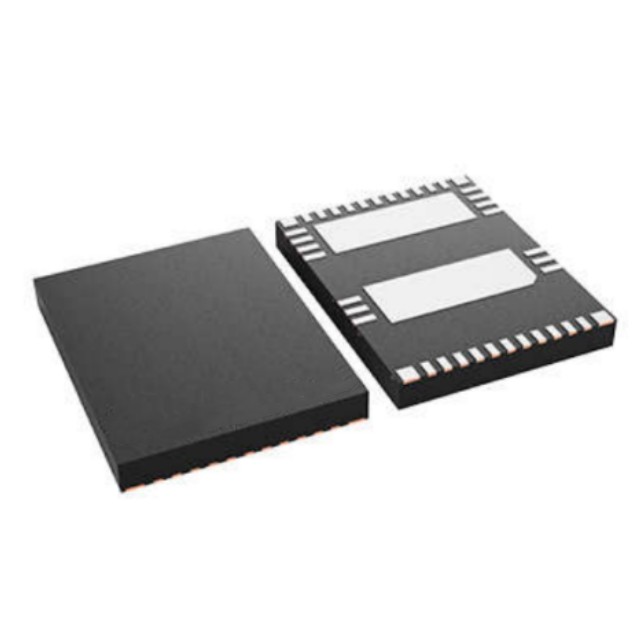

For picture reference, please see the specifications
< >

Commodity Model:LMG2640RRGR

Trade Name:GaN FET

Brand:TI

Particular Year:25+

Package:VQFN-40

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LMG2640RRGR
Package
VQFN-40
Describe
650V 105mΩ GaN half-bridge with integrated driver, protection and current sense

Product Description

LMG2640RRGR is a 650V GaN power-FET half bridge intended for switch mode power supply applications. The LMG2640RRGR simplifies design, reduces component count, and reduces board space by integrating half-bridge power FETs, gate drivers, bootstrap diode, and high-side gate-drive level shifter in a 9mm by 7mm QFN package.


Features Of LMG2640RRGR

650V GaN power-FET half bridge

105mΩ low-side and high-side GaN FETs

Integrated gate drivers with low propagation delays

Current-sense emulation with high-bandwidth and high accuracy

Low-side / high-side gate-drive interlock

High-side gate-drive signal level shifter

Smart-switched bootstrap diode function

High-side start up : < 8µs

Low-side / high-side cycle-by-cycle over-current protection

Over-temperature protection with FLT pin reporting

AUX idle quiescent current: 250µA

AUX standby quiescent current: 50µA

BST idle quiescent current: 65µA

Maximum supply and input logic pin voltage: 26V

9×7mm QFN package with dual thermal pads


Applications Of LMG2640RRGR

AC/DC adapters and chargers

AC/DC USB wall outlet power supplies

AC/DC auxiliary power supplies

Mobile wall charger design

USB wall power outlet


Associated Products

Model

Brand

Package

Quantity

Describe

TP65H100G4LSGB

Renesas

8-PQFN

2000

650V 92mΩ SuperGaN FET in PQFN-8x8 package

TP65H100G4PS

Renesas

TO-220-3

1500

650V 92mΩ SuperGaN FET in TO-220-3 package

TP65H035G4YS

Renesas

TO-247-4

2000

650V 35mΩ SuperGaN FET in TO-247-4 package

TP65H035G4WSQA

Renesas

TO-247-3

2000

650V 35mΩ SuperGaN FET compliant with AEC-Q101 standard

TP65H070G4RS

Renesas

TOLT-16

2000

650V 72mΩ SuperGaN FET in TOLT package

TP65H070G4PS

Renesas

TO-220-3

2000

650V 70mΩ SuperGaN FET in TOT-220-3 package

TP65H070G4QS

Renesas

TOLL-8

2000

650V 72mΩ SuperGaN FET in TOLL package

TP65H050G4QS

Renesas

TOLL-8

2000

650V 50mΩ SuperGaN FET in TOLL package

TP65H050G4WS

Renesas

TO-247-3

1500

650V 50mΩ SuperGaN FET in TO-247-3 package

TP65H050G4BS

Renesas

TO-263-3

1500

650V 50mΩ SuperGaN FET (D2-PAK) in TO-263 package
