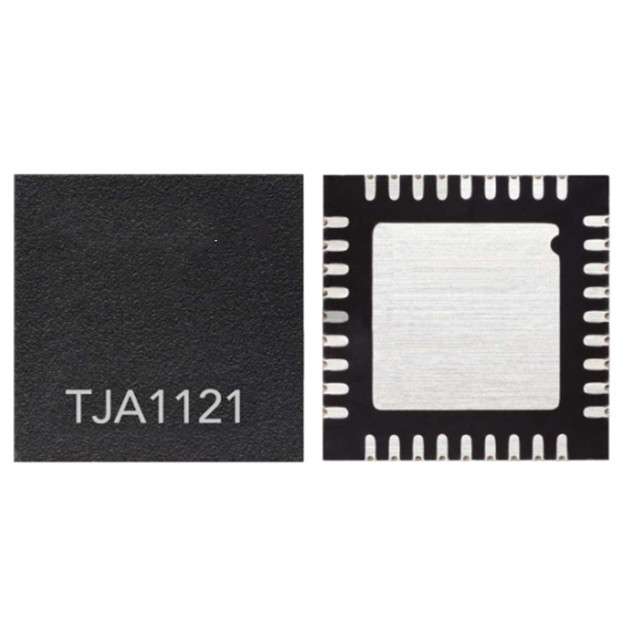

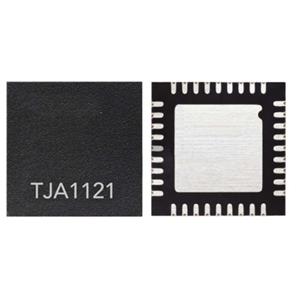

The TJA1121AHN Ethernet transceiver adds MACsec to NXP's 1000BASE-T1 automotive Ethernet PHY product portfolio. It resolves the security issues of future networks and provides an efficient hardware-based solution for MACsec with a 1Gbps line rate. To enable the design of platforms with and without MACsec to achieve speed level expansion, TJA1121AHN is backward compatible with TJA1103, TJA1104 and TJA1120. This device adopts a compact package HVQFN36 (6x6mm), making it suitable for space-constrained applications.

Key features

"Safety

Ieee 802.1AE-2018 MACsec (1Gbps line rate)

Basic information

1000BASE-T1 PHY compliant with IEEE802.3bp standard

Obtained AEC-Q1001 level certification

HVQFN 36-pin package (6×6mm)

RGMII (TJA1121A) or SGMII (TJA1121B)

OPEN Alliance TC-10

Applicable to automotive use cases

Complies with the ISO26262 ASIL B functional safety standard

Supports IEEE1588v2 and 802.1AS-rev 2-step timestamps

Supports shielded and unshielded twisted-pair cables

Enhanced integrated pulse shaping for low radio frequency transmission

diagnosis

Advanced PHY functionality compliant with Open Alliance TC-12

Built-in Self-Check (BIST

Real-time monitoring of link stability and data quality

Application scenarios

The vehicle-mounted communication network ‌ : connects devices such as the central processing unit, instrument panel, and vehicle-mounted camera to achieve high-speed data transmission. ‌

Autonomous driving system ‌ : provides stable bandwidth support for autonomous driving.
