The OPA593DNTR is a high-voltage (85V), high-precision, wide-bandwidth (10MHz), high-output current (250mA), and unit gain stable power operational amplifier.

Technical Specification

Amplifier type: Power

Number of circuits: 1

Output type: Push-pull type, full swing

Pressure swing rate: 45V/µs

Gain-bandwidth product: 10 MHz

Current - Input bias: 1 pA

Voltage - Input compensation: 20 µV

Current - Power supply: 3.25mA

Current - Output/Channel: 250 mA

Voltage - Span (minimum value) : 8 V

Voltage - Span (maximum value) : 85 V

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

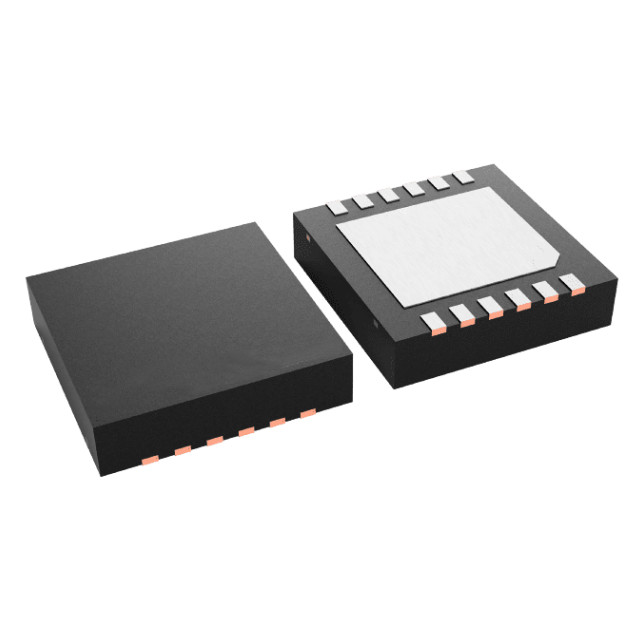

Package/Housing: 12-WFDFN

The OPA593DNTR employs laser trimming technology to improve the offset voltage (20µV, typical value) and offset voltage temperature drift (0.4µV/°C, typical value), thus eliminating the need for calibration. This device features a multiplexer-friendly input, enabling a differential input voltage range for the power rail and contributing to the improvement of the stability performance of multi-channel systems.

In addition, the OPA593DNTR operational amplifier is suitable for circuit designs that require high precision, wide bandwidth and high output current, such as:

Semiconductor testing

Semiconductor manufacturing

Programmable DC power supply

LCD test

CT and PET scanners
