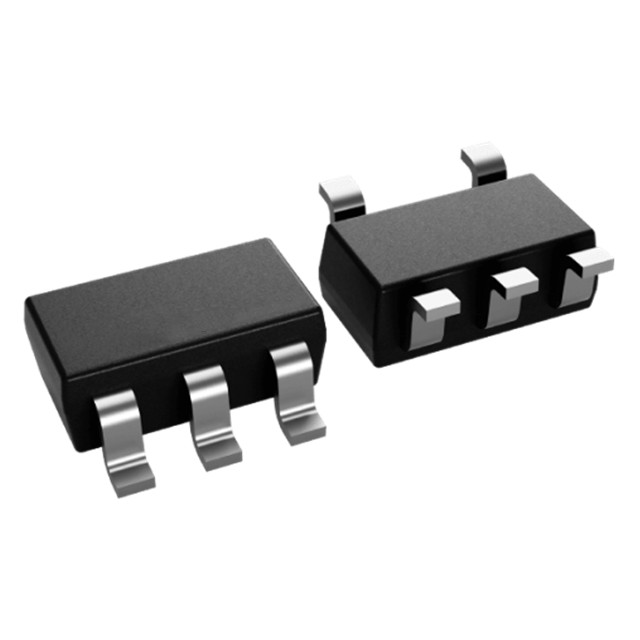

For picture reference, please see the specifications
< >

Commodity Model:OPA596DBVR

Trade Name:Operational Amplifiers

Brand:TI

Particular Year:25+

Package:SOT-23-5

Delivery Date:New and original

Stock: 4000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
OPA596DBVR
Package
SOT-23-5
Describe
85V high speed (100V/μs) power (400µA) ratio precision operational amplifier

Product Description

The OPA596DBVR is A precision operational amplifier with a small package, featuring a high speed of 85V (100V/μs) and a power ratio of 400µA. This chip has the following main characteristics:

High voltage swing rate: 100V/µs

Low power consumption: 420µA

Wide power supply voltage range:

±4V to ±42.5V

8V to 85V

Multiplexer-friendly input

Input lower than the negative power rail

Rail-to-rail output

Gain bandwidth: 3.75MHz

Low noise: 12.8nV/√Hz

Low input bias current: 5pA

Low input offset voltage: ±1mV

Output current drive: ±30mA

Wide temperature range: -40°C to +125°C

Industry-standard small package: DBV (5-pin SOT-23)


The OPA596DBVR enhances the system's output voltage through a high-gain configuration, enabling the realization of next-generation high-voltage systems (such as output load drivers in semiconductor testing and digital power supplies). The low power consumption and industry-standard small package make this device suitable for high-density systems with size constraints, while reducing the thermal management requirements of the system.


With proprietary design technology, the OPA596DBVR can achieve an extremely high slew rate while having extremely low power consumption, which can improve the stabilization time of large signals and maximize the effective bandwidth of large signals.


The application of OPA596DBVR

Semiconductor testing

LCD test

Programmable DC power supply

CT and PET scanners

Source Measurement Unit (SMU)

Optical module

Laboratory and field instruments
