The TCAN1042HVDR transceiver complies with the ISO 11898-2 (2016) high-speed CAN (Controller Area Network) physical layer standard and is specifically designed for CAN FD networks with data rates up to 2 Mbps. Versions with the ‘G’ suffix support data rates up to 5 Mbps, while versions with the ‘V’ suffix feature an auxiliary power input for I/O level conversion input pin thresholds and RXD output levels. The transceiver includes a low-power standby mode and supports remote wake-up request functionality, along with built-in protection features to enhance device and network robustness.

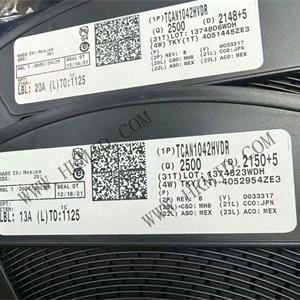

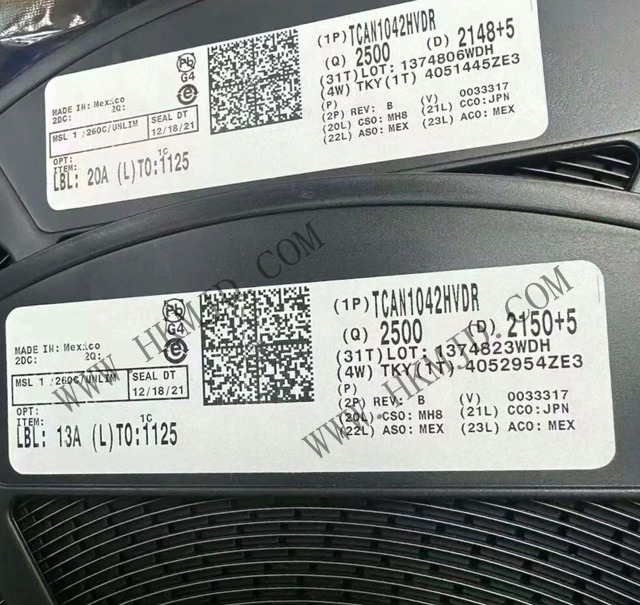

Model: TCAN1042HVDR

Type: High-speed CAN FD transceiver

Brand: Texas Instruments

Package: 8-SOIC (3.90mm wide, surface mount)

Operating temperature: -55°C to +125°C (industrial grade)

Compliant with standards: ISO 11898-2:2016 (high-speed CAN physical layer standard)

Core Features: TCAN1042HVDR

High-Speed Data Transmission: Supports CAN FD (Flexible Data Rate), up to 2 Mbps (models with a ‘G’ suffix can reach 5 Mbps).

Power supply and voltage range: Main power supply 4.5V to 5.5V, supports 3.3V/5V MCU I/O level conversion (models with ‘V’ suffix).

Protection features:

Bus fault protection: ±58V (non-H models) or ±70V (H models).

ESD protection: ±16kV (HBM), ±15kV (IEC).

Undervoltage protection (UVP), thermal shutdown (TSD), and dominant timeout (DTO).

Low-power mode: Standby mode supports remote wake-up with extremely low static current.

Electrical Performance: Receiver common-mode input range: ±30V, typical loop delay 110ns.

Applications: TCAN1042HVDR

• All devices support high-load CAN networks

• Heavy machinery ISOBUS applications – ISO 11783

• Industrial automation, control, sensor, and drive systems

• Building, security, and temperature control automation

• Telecommunications base station status and control

• CAN bus standards such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783, and CANaerospace
