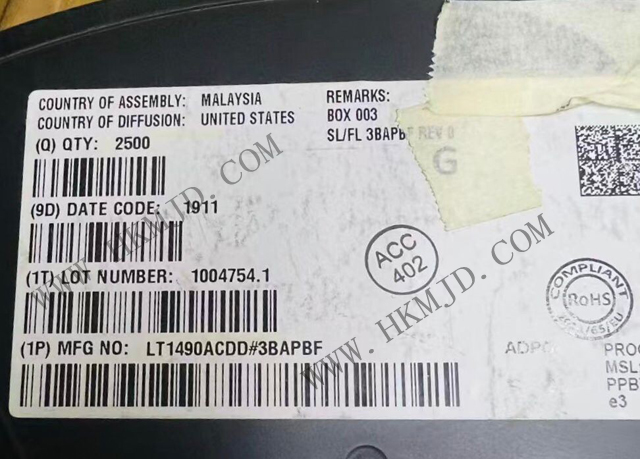

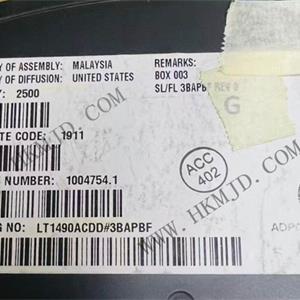

For picture reference, please see the specifications
< >

Commodity Model:LT1490ACDD

Trade Name:Operational Amplifiers

Brand:ADI

Particular Year:19+

Package:DFN-8

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT1490ACDD
Package
DFN-8
Describe
Dual Over-The-Top Micropower Rail-to-Rail Input and Output Operational Amplifiers

Product Description

LT1490ACDD is dual Operational Amplifiers with a low input offset voltage of 500μV max. The LT1490ACDD operate on all single and split supplies with a total voltage of 2V to 44V, drawing only 40μA of quiescent current per amplifier.


Specification Of LT1490ACDD

Number of Channels: 2 Channel

GBP - Gain Bandwidth Product: 180 kHz

SR - Slew Rate: 60 mV/us

Vos - Input Offset Voltage: 250 uV

Ib - Input Bias Current: 1 nA

Supply Voltage - Max: 44 V

Supply Voltage - Min: 2 V

Operating Supply Current: 40 uA

Output Current per Channel: 25 mA

CMRR - Common Mode Rejection Ratio: 98 dB

en - Input Voltage Noise Density: 50 nV/sqrt Hz

Package / Case: DFN-8

Shutdown: No Shutdown

Minimum Operating Temperature: 0 ℃

Maximum Operating Temperature: + 70 ℃

Gain V/V: 1500 V/mV

In - Input Noise Current Density: 0.015 pA/sqrt Hz

Input Type: Rail-to-Rail

Ios - Input Offset Current: 800 pA

Output Type: Rail-to-Rail

Product Type: Op Amps - Operational Amplifiers

PSRR - Power Supply Rejection Ratio: 98 dB


Features Of LT1490ACDD

Low Input Offset Voltage: 500μV Max

Output Swings to 10mV Max from V–

Rail-to-Rail Input and Output

Micropower: 50μA/Amplifier Max

Over-The-Top® Input Common Mode Range Extends 44V Above V–, Independent of V+

Specified on 3V, 5V and ±15V Supplies

High Output Current: 20mA

Output Drives 10,000pF with Output Compensation

Reverse Battery Protection to 18V

No Supply Sequencing Problems

High Voltage Gain: 1500V/mV

High CMRR: 98dB

No Phase Reversal

Gain Bandwidth Product: 200kHz

Tiny 3mm × 3mm × 0.8mm DFN Package


Applications Of LT1490ACDD

Battery- or Solar-Powered Systems

Portable Instrumentation

Sensor Conditioning

Supply Current Sensing

Battery Monitoring

Micropower Active Filters

4mA to 20mA Transmitters
