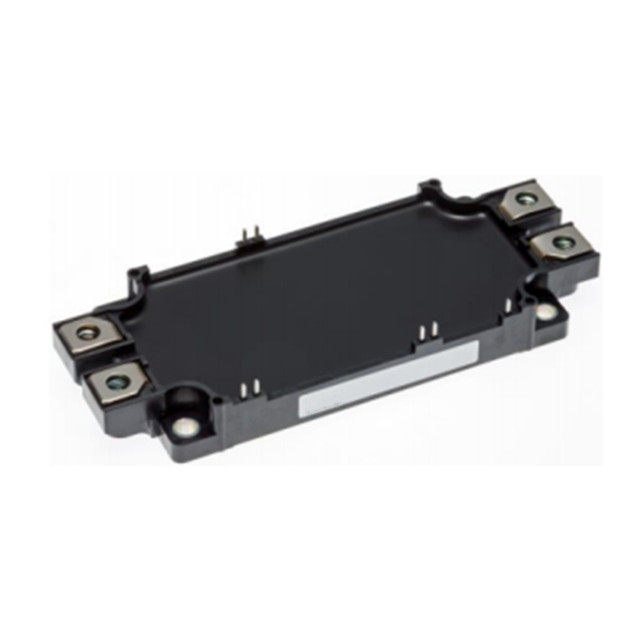

The CM600DX-34T module adopts Mitsubishi NX series IGBT technology, optimizing the switching loss and conduction performance, and the power loss is lower than that of the previous generation products. This module integrates a fast recovery diode (FRD) and supports efficient energy feedback.

Technical characteristics

The product lineup has added products with built-in three-phase converters, inverters and braking circuits (CIB), which helps simplify the design of industrial equipment.

2. The external dimensions are reduced by approximately 36% compared to traditional products, which is conducive to the miniaturization of industrial equipment (CIB).

3. Equipped with the 7th generation IGBT with CSTBT™※1 structure and diodes with RFC※2 structure, it reduces power loss and is conducive to lowering the power consumption of industrial equipment.

4. Reducing the welding parts through the new structure and extending the thermal cycle life is conducive to improving the reliability of industrial equipment.

5. Crimp terminals and PC-TIM※3 are adopted to simplify the assembly process of industrial equipment.

The main parameters of CM600DX-34T include:

Emitter breakdown voltage (VCES) : 1700V

Collector current (IC) : 600A

Internal topology: 2 units (Simplified circuit layout, suitable for inverter or frequency converter design)

Isolation voltage (Viso) : 4000Vrms (between the module substrate and the terminal)

These parameters make the CM600DX-34T suitable for circuit applications that require high current and high voltage handling, such as motor control, power conversion, ‌. In addition, the module is RoHS compliant, indicating that environmentally friendly materials such as lead-free ‌ are used in its manufacturing process.
