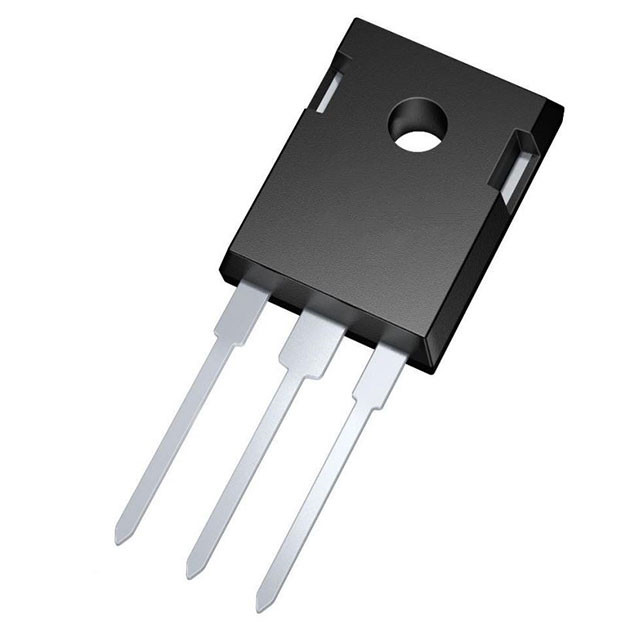

The IGW75N65H5 device is an insulated gate bipolar transistor (IGBT) that adopts the new TRENCHSTOP™5 IGBT technology, offering unparalleled high efficiency in hard-switching applications. Has the following advantages and technical specifications:

Product advantages

It has excellent efficiency, reduces junction temperature and casing temperature, thereby enhancing equipment reliability

The busbar voltage can be increased by 50V without affecting reliability

Higher power density design

Technical Specification

IGBT type: Channel

Voltage - Emitter breakdown (maximum value) : 650 V

Current - Collector (Ic) (maximum value) : 120 A

Current-collector pulse (Icm) : 300 A

Vce(on) (maximum value) at different Vge and Ic: 2.1V @ 15V, 75A

Power - Maximum: 395 W

Switching energy: 2.25mJ (on), 950µJ (off)

Input type: Standard

Gate charge: 160 nC

Td (on/off) value at 25°C: 28ns/174ns

Test conditions: 400V, 75A, 8 ohms, 15V

Operating temperature: -40°C to 175°C (TJ)

Installation type: Through hole

Packaging/Shell: TO-247-3

Application field

IGW75N65H5 IS SUITABLE for a wide range of power electronics that require high efficiency, low LOSS, especially in household appliances, industrial control, automotive electronics and OTHER fields ‌.
