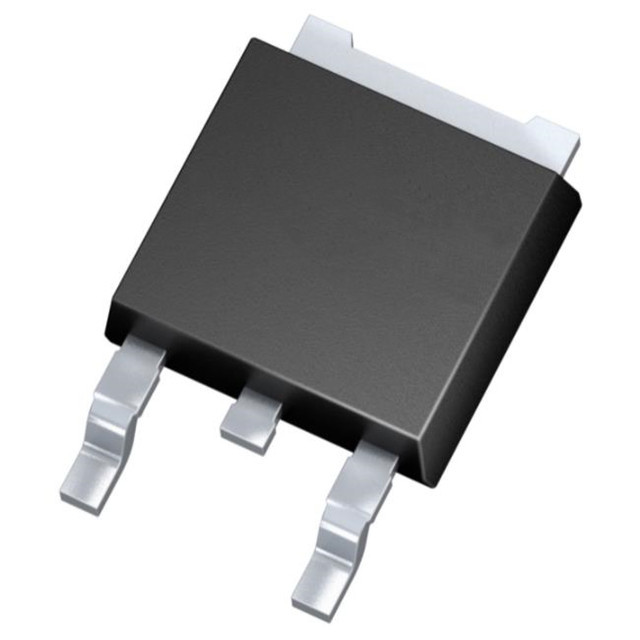

The IGD08N120S7 is A 1200 V, 8 A hard-switched TRENCHSTOP™ IGBT7 S7 single-transistor device in TO-252 package with a low saturation voltage drop VCEsat TO achieve ultra-low conduction losses in the target application.

Feature description

VCE = 1200 V

IC = 8 A

Low saturation pressure drop VCEsat = 2 V (Tvj = 150°C)

High short-circuit resistance capability (8 µs)

Wide controllable range of dv/dt

Application field

IGD08N120S7 is suitable for industrial motor drive and control and other fields, especially for auxiliary power supply designs that require high voltage and high efficiency ‌.

Technical Specification

IGBT type: Grooved field cut-off

Voltage - Emitter breakdown (maximum value) : 1200 V

Current - Collector (Ic) (maximum value) : 24 A

Current-collector pulse (Icm) : 24 A

Vce(on) (maximum value) at different Vge and Ic: 2V @ 15V, 8A

Power - Maximum: 106 W

Switching energy: 460µJ (on), 410µJ (off)

Input type: Standard

Gate charge: 55 nC

Td (on/off) value at 25°C: 15ns/149ns

Test conditions: 600V, 8A, 20 ohms, 15V

Operating temperature: -40°C to 150°C (TJ)

Installation type: Surface mount type

Packaging/Shell: TO-252-3
