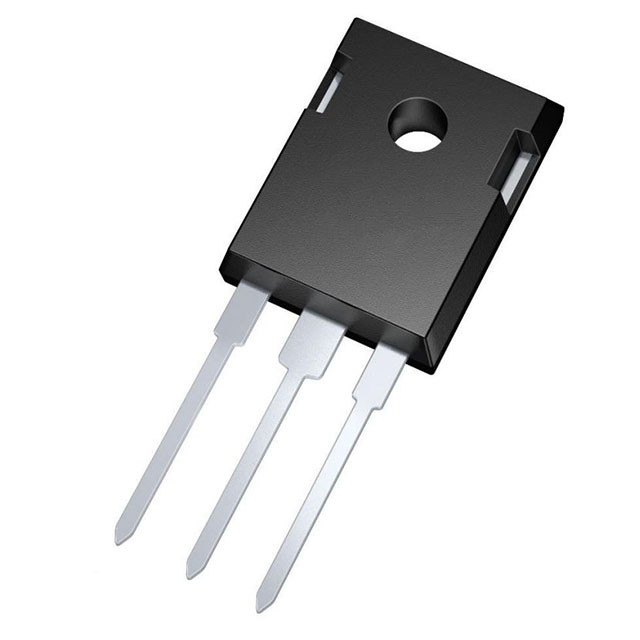

The IKW50N65ES5 insulated gate bipolar transistor (IGBT) is suitable for applications with switching frequencies ranging from 10 kHz to 40 kHz, enabling high efficiency and faster time-to-market, reducing circuit design complexity and optimizing PCB bill of materials costs. This product has the following advantages and technical parameters:

The advantages of IKW50N65ES5

The VCEpeak clamping circuit is not required

No gate clamping element is required

Outstanding EMI behavior

It is very suitable for parallel connection

Technical parameters

IGBT type: Channel

Voltage - Emitter breakdown (maximum value) : 650 V

Current - Collector (Ic) (maximum value) : 80 A

Current-collector pulse (Icm) : 200 A

Vce(on) (maximum value) at different Vge and Ic: 1.7V @ 15V, 50A

Power - Maximum value: 274 W

Switching energy: 1.23mJ (on), 550µJ (off)

Input type: Standard

Gate charge: 120 nC

Td (on/off) value at 25°C: 20ns/127ns

Test conditions: 400V, 50A, 8.2 ohms, 15V

Reverse recovery time (trr) : 70 ns

Operating temperature: -40°C to 175°C (TJ)

Installation type: Through hole

Packaging/Shell: TO-247-3

In addition, the IKW50N65ES5 is suitable for applications that require high efficiency and fast switching frequency, such as industrial heating and welding, uninterruptible power supply (UPS) ‌. Due to its high efficiency and reliability, this device has broad application prospects in industrial and power electronic equipment.
