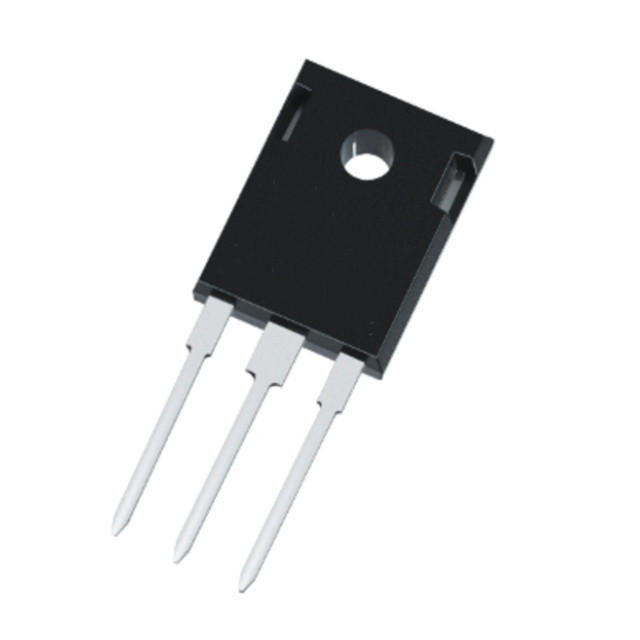

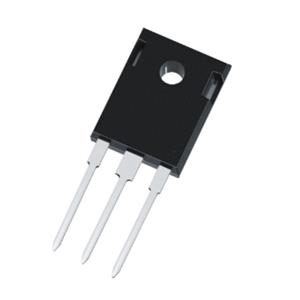

The IHW20N135R5 is a 1350 V IGBT monolithic anti-pass diode in a TO247 package with the following key parameters:

IGBT type: -

Voltage - Emitter breakdown (maximum value) : 1350 V

Current - Collector (Ic) (maximum value) : 40 A

Current-collector pulse (Icm) : 60 A

Vce(on) (maximum value) at different Vge and Ic: 1.85V @ 15V, 20A

Power - Maximum: 288 W

Switching energy: 950µJ (off)

Input type: Standard

Gate charge: 170 nC

Td (on/off) value at 25°C: -/235ns

Test conditions: 600V, 20A, 10 ohms, 15V

Operating temperature: -40°C to 175°C (TJ)

Installation type: Through hole

Packaging/Shell: TO-247-3

In addition, IHW20N135R5 also has the following advantages:

Increase in switching frequency

Reduce power loss

Better thermal management can enhance reliability

Lower EMI filtering requirements

Reduce system costs

The highest reliability for peak current

The IHW20N135R5 IGBT is particularly suitable for induction cooking applications, such as induction cooking stoves and inverter microwave ovens. Due to its monolithic integrated reverse conducting diode, it is highly suitable for soft-switching applications and also for designs that require hard-switching functionality.
