The R5F56719HGLE is a 32-bit microcontroller, suitable for real-time control and contactless HMI. This microcontroller features outstanding real-time performance, is equipped with the RXv3 core, and operates at a frequency of 120MHz. Its characteristics and technical specifications are as follows:

Features

120MHz RXv3 core (707CoreMark, 48.8 CoreMark/mA), single precision FPU CPU

1MB code flash memory with dual group functions, 8KB data flash memory, and 384KB SRAM memory

Capacitive touch sensing unit, serial sound I/F HMI

It CAN be connected to SD host interface, USB full speed, CAN, QSPI, SPI, I2C and SCI with XIP mode

Analog 12-bit ADC with temperature sensor

Trusted security IP and VBATT tampering detection

Technical Specification

Core processor: RXv3

Kernel specification: 32-bit single-core

Speed: 120MHz

Connection capabilities: CANbus, I2C, LINbus, QSPI, SCI, SPI, USB

Peripheral devices: Capacitive touch, DMA, LVD, POR, PWM, WDT

I/O number: 111

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 384K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.7V - 3.6V

Data converter: A/D 20x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

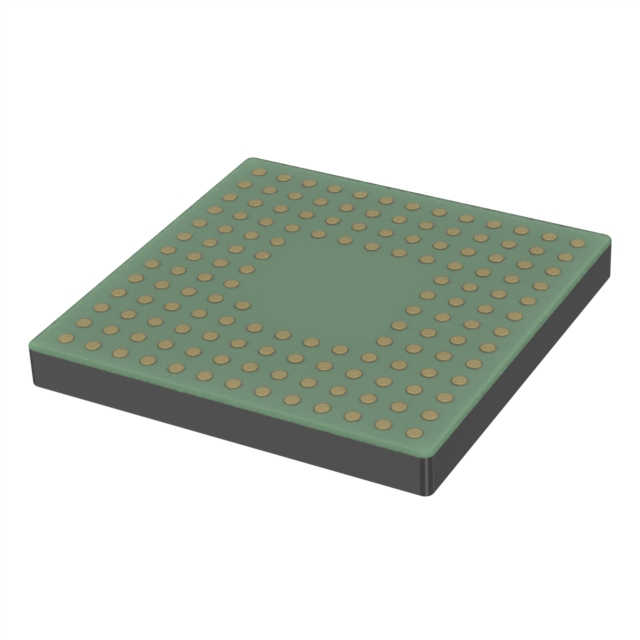

Device packaging: 145-TFLGA (9x9)

Thanks to the capacitive touch sensing unit in household appliances, the R5F56719HGLE microcontroller cloud connection enables outdoor remote control, transmits usage data to users, and supports firmware updates to correct errors or add new features.
