The R5F564MLCDBG 32-bit microcontroller can operate at a frequency of up to 120 MHz and offers a leading 5.06 CoreMark/MHz performance. Its technical parameters are as follows:

Technical parameters

Core processor: RXv2

Kernel specification: 32-bit single-core

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O number: 127

Program storage capacity: 4MB (4M x 8)

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 552K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.7V - 3.6V

Data converter: A/D 29x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

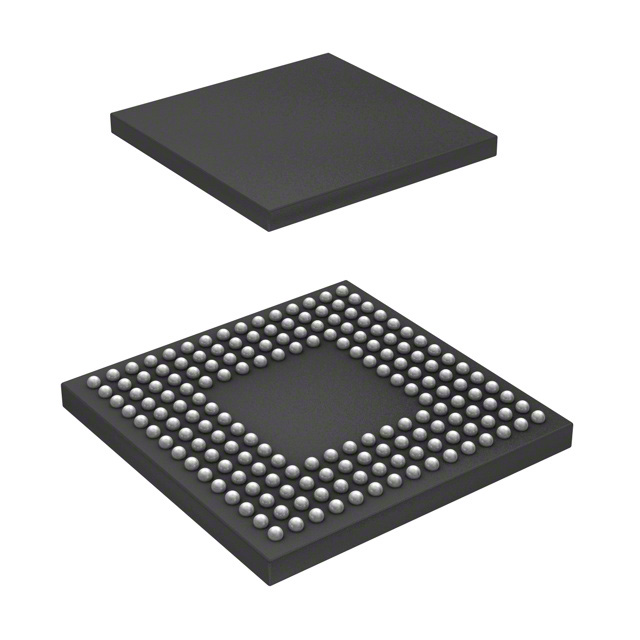

Device packaging: 176-LFBGA (13x13)

The R5F564MLCDBG microcontroller adopts the powerful RXv2 core and is backward compatible with the RX core used in existing RX products. Compared with existing RX products, the CoreMark/MHz performance of the RXv2 core has increased by 1.48 times, power consumption has decreased by 40%, and code efficiency is even higher, which is conducive to achieving high-speed and low-power systems.

In addition, the RX64M series of MCUS are also equipped with large-capacity memory featuring up to 4 MB of code ROM and 552 KB of working RAM. The built-in functions include the highly praised event link controller of RX200 and the rich functions of RX63N, as well as the SD card and audio interface with high market demand, and the IEEE 1588 industrial Ethernet function has been added. Therefore, the R5F564MLCDBG is suitable for industrial equipment, network devices, and other applications that require advanced real-time performance and large-capacity memory.
