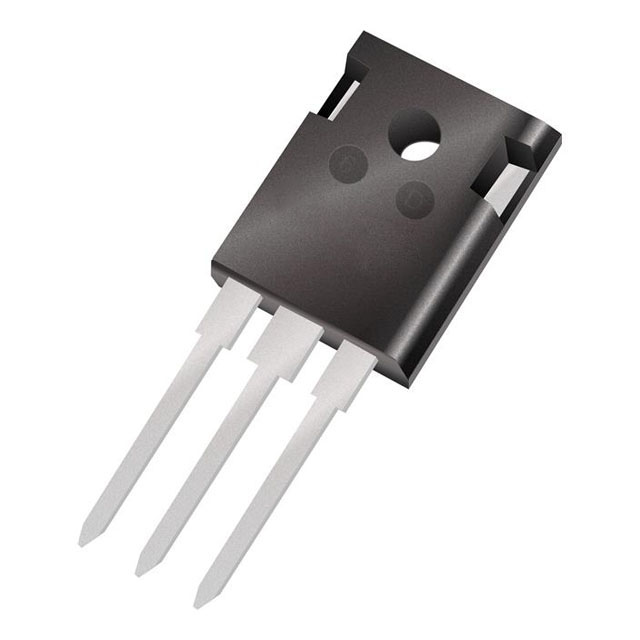

The UJ3C120150K3S is a 1200V, 150mohm, Silicon Carbide (SiC) cascade JFET - EliteSiC transistor in a TO-247-3 package.

Basic Information:

Model No.: UJ3C120150K3S

Package: TO-247-3

Type: Silicon Carbide (SiC) MOSFET Transistor

Applications:

- Electric vehicle charging

- Photovoltaic inverters

- Power factor correction devices

- Motor Drivers

- Induction heating

UJ3C120150K3S Product Attributes:

FET Type: N-Channel

Technology: SiCFET (Common Source Common Gate SiCJFET)

Drain-Source Voltage (Vdss): 1200 V

Current at 25°C - Continuous Drain (Id): 18.4A (Tc)

Drive Voltage (Max Rds On, Min Rds On): 12V

On Resistance (Max) at Different Id, Vgs: 180 mOhm @ 5A, 12V

Vgs(th) at different Id (max): 5.5V @ 10mA

Gate Charge (Qg) (max) at varying Vgs: 30 nC @ 15 V

Vgs (max): ±25V

Input capacitance (Ciss) at varying Vds (max): 738 pF @ 100 V

Power Dissipation (Max): 166.7W (Tc)

Operating Temperature: -55°C ~ 175°C (TJ)

Mounting Type: Through Hole

Supplier Device Package: TO-247-3

Package/Housing: TO-247-3
