TLE5046IC-AK-LR: High-end GMR Wheel Speed Sensor with Direction Detection and AK Protocol

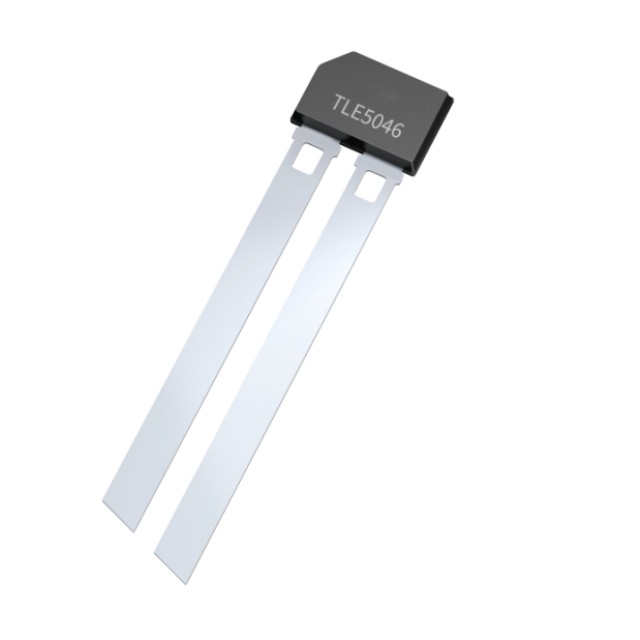

Model: TLE5046IC-AK-LR

Package: PG-SSO-2

Type: Magnetic Speed Sensor - GMR Wheel Speed Sensor

The TLE5046IC-AK-LR is a wheel speed sensor with direction detection designed for complex vehicle control systems.The TLE5046iC has best-in-class jitter performance, making it an excellent choice for wheel speed applications. The sensor senses speed with high accuracy and can therefore be used as a component of an indirect tyre pressure monitoring system (iTPMS). It is based on an integrated Giant Magneto Resistor (iGMR).

TLE5046IC-AK-LR Product Features:

Low jitter of 0.02% due to high switching accuracy enables iTPMS

Dual-wire current interface provides speed and direction information

Advanced stop-start functionality through the following features

- Innovative watchdog concept to ensure maximum signal availability

- No loss of direction information during start-stop conditions

Wide operating junction temperature range -40°C to 190°C

Protection against external magnetic fields up to 2mT by differential sensing principle

High sensitivity with excellent air gap performance and resistance to Y-displacement effects

Sensors are available in small 5x3mm packages without external capacitors, saving module size, increasing resistance to mechanical stress and enabling design freedom

Advanced EMC concept maximises sensor signal availability

Newly designed micro-disconnect feature protects against power line interference
