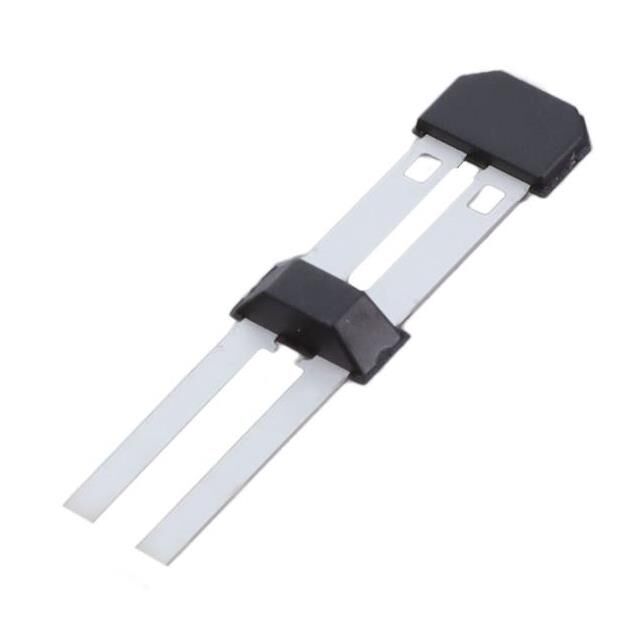

TLE4955C-E4: XENSIV™ Magnetic Speed Sensor Based on Hall Technology with Excellent Air Gap Performance

Model: TLE4955C-E4

Package: PG-SSO-2

Type: Magnetic Speed Sensor

The TLE4955C-E4 is an integrated differential Hall effect sensor for transmission applications with a two-wire PWM output current interface. Its basic function is to provide information about speed and direction of rotation to the transmission control unit.The TLE4955C-E4 contains a sophisticated algorithm that actively suppresses vibration while maintaining good air gap performance.

TLE4955C-E4 Product Features:

High magnetic sensitivity

Large air gap during operation

Two-wire PWM current interface

Fast start-up

Dynamic self-calibration principle

Adaptive hysteresis

Detection of direction of rotation

High vibration suppression

Acceleration from zero to 12 kHz

Wide operating temperature range

Strong piezoresistive effect

Single chip solution

Magnetic encoder and ferromagnetic wheel applications

Magnet North and South pole pre-sensing possible

Modular package with integrated overmoulded capacitors

1.8 nF between V DD and GND
