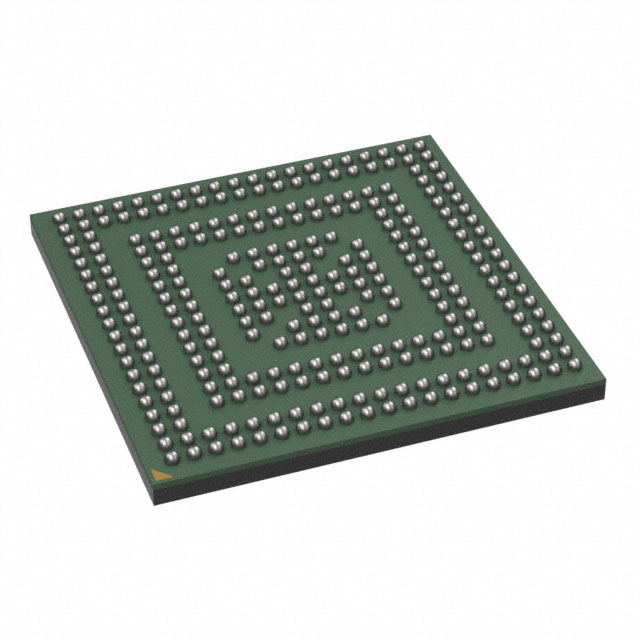

SPC58NE84C3QMHAY is 32-bit Power Architecture® microcontroller for automotive ASIL-D applications.

SPC58NE84C3QMHAY Three main CPUs, dual issue, 32-bit CPU core complexes (e200z4), two of them having one checker core in lock-step.

Product Attributes

Core Processor:e200z4

Core Size:32-Bit Tri-Core

Speed:180MHz

Connectivity:CANbus, Ethernet, FlexRay, I²C, LINbus, SPI

Peripherals:DMA

Number of I/O:64

Program Memory Size:6MB (6M x 8)

Program Memory Type:FLASH

EEPROM Size:256K x 8

RAM Size:608K x 8

Voltage - Supply (Vcc/Vdd):1.2V, 3.3V, 5V

Oscillator Type:Internal

Operating Temperature:-40°C ~ 125°C (TA)

Product Features

32-bit Power Architecture VLE compliant CPU cores

6576 KB (6288 KB code flash + 288 KB data flash) on-chip flash memory

608 KB on-chip general-purpose SRAM (in addition to 160 KB core local data RAM)

96-channel direct memory access controller (eDMA)

Dual-channel FlexRay controller

Hardware Security Module (HSM)

Junction temperature range -40 °C to 165 °C

External Regulators (1.2 V core, 3.3 V–5 V IO)
