The DS80PCI800 is a low power 8-channel repeater with 4-stage input equalisation and an output de-duplication driver to enhance the coverage of PCI-Express serial links in board-to-board or cable interconnects. Ideal for high density x8 and x16 PCI-Express configurations, the device automatically detects and adapts to Gen-1, Gen-2 and Gen-3 data rates for easy system upgrades.

The DS80PCI800 offers programmable transmit de-emphasis (up to 12 dB), transmit VOD (up to 1300 mVp-p) and receive equalisation (up to 36 dB) for longer range transmission over lossy copper cable (10m or more) or backplanes with multiple connectors (40" or more). The receiver can open an input eye that is completely closed due to inter-symbol interference (ISI) introduced by the interconnecting medium.

Product properties

Product Type: Equaliser

Mounting Style: SMD/SMT

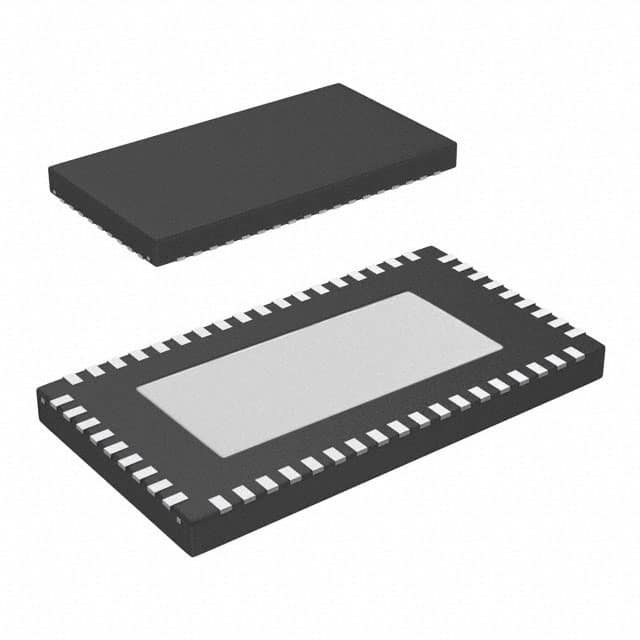

Package / Case: WQFN-54

Product: Equalizers

Data Rate: 8 Gb/s

Operating supply voltage: 2.5 V, 3.3 V

Operating supply current: 192 mA

Minimum operating temperature: - 40 C

Maximum operating temperature: + 85 C

Series: DS80PCI800

Development Kit: DS80PCI800EVK/NOPB

Humidity Sensitivity: Yes

Number of Exciters: 8 Driver

Number of receivers: 8 Receiver

Operating temperature range: - 40 C to + 85 C

Pd-Power Dissipation: 900 mW

Number of factory packs: 250

Unit weight: 166.200 mg

Applications

- PCI Express Gen-1, Gen-2 and Gen-3
