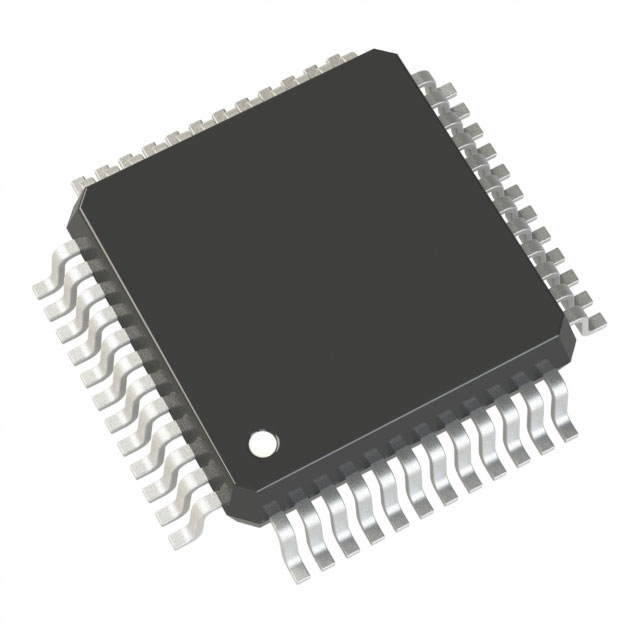

FS32K116LAT0VLFT is Low-power 32-Bit Single-Core Arm Cortex-M4F/M0+ core with excellent energy efficiency.

Product Attributes

Core Processor: ARM® Cortex®-M0+

Core Size: 32-Bit Single-Core

Speed: 48MHz

Number of I/O: 43

Program Memory Size: 128KB (128K x 8)

Program Memory Type: FLASH

EEPROM Size: 2K x 8

RAM Size: 17K x 8

Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V

Data Converters: A/D 13x12b SAR; D/A1x8b

Operating Temperature: -40°C ~ 105°C (TA)

Product Features

Voltage range: 2.7 V to 5.5 V

48 MHz Fast Internal RC oscillator (FIRC)

8 MHz Slow Internal RC oscillator (SIRC)

128 kHz Low Power Oscillator (LPO)

Up to 112 MHz (HSRUN) System Phased Lock Loop (SPLL)

Up to 20 MHz TCLK and 25 MHz SWD_CLK

Up to 2 MB program flash memory with ECC

Up to 256 KB SRAM with ECC

One 16-bit Low Power Timer (LPTMR) with flexible wake up control

Two Programmable Delay Blocks (PDB) with flexible trigger system

One 32-bit Low Power Interrupt Timer (LPIT) with 4 channels

32-bit Real Time Counter (RTC)

Up to 4 KB of FlexRAM for use as SRAM or EEPROM emulation

Up to 156 GPIO pins with interrupt functionality

Up to three FlexCAN modules (with optional CAN-FD support)
