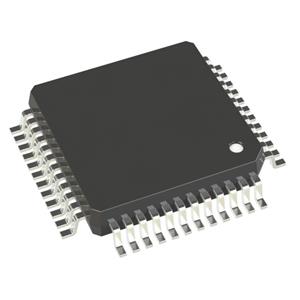

R5F526TFCGFL microcontrollers are 5V-compatible products which provide dual-motor control using Field Oriented Control (FOC) and Power Factor Correction (PFC) control on a single chip. The RXv3 core, a 3rd generation RX CPU core operating at 120 MHz, flash memory capable of 120 MHz read operations, and a trigonometric function unit (TFUv2) provide a higher level of compute performance. The timer functions support 120MHz PWM (3-phase complementary x 2 channels + single-phase complementary x 2 channels), and analog function is provided by 12-bit A/D converter x 3 units (2 units with a 3-channel simultaneous sample & hold circuit). The lineup includes a HOCO with guaranteed oscillation accuracy of ±1.0% (-20°C≤Ta), data flash memory, a single-ended PGA, comparator and other components in a compact QFN package attributes to reduction in the number of components and space saving. In addition, it offers CAN-FD for high-speed inter-device communication and I3C Basic for high-speed communication with sensors which enable faster data transfers. The flash memory has a dual bank configuration, and the BGO/SWAP function to enable rewriting of the firmware without system stoppage. Trusted Secure IP-Lite with its integrated key management function and cryptographic engine reduces the risk of information leaks from the system.

Feature Of R5F526TFCGFL

120 MHz CPU RXv3 core (721 CoreMark)

Single-precision FPU, batch register save function for faster interrupt response, Trigonometric Function Accelerator (TFUv2)

Operating temperature -40°C to 105°C

Up to 512 KB flash memory (120 MHz read access, dual bank function), up to 64 KB SRAM

16KB data flash that can store data like an EEPROM

12-bit A/D converter x 3 units, 12-bit D/A converter x 2 channels

Comparator x 6 channels, single-ended PGA x 6 channels

120 MHz PWM

3-phase complementary x 2 channels, 5-phase complementary x 1 channel, single-phase complementary x 8 channels

High-resolution PWM x 4 channels with timing adjustment down to 260 ps (picoseconds)

+/-1.0% accuracy high-speed on-chip oscillator

Trusted Secure IP-Lite (AES/TRNG)

CAN FD (ISO 11898-1:2015 compliant, max. 5 Mbps)

I3C Basic (max. 10 Mbps)

Applications Of R5F526TFCGFL

Portable EV Charger

Whole Speed Range Sensorless Motor Solution

Digital Power Conversion with Totem Pole Interleaved PFC

Torque Control System
