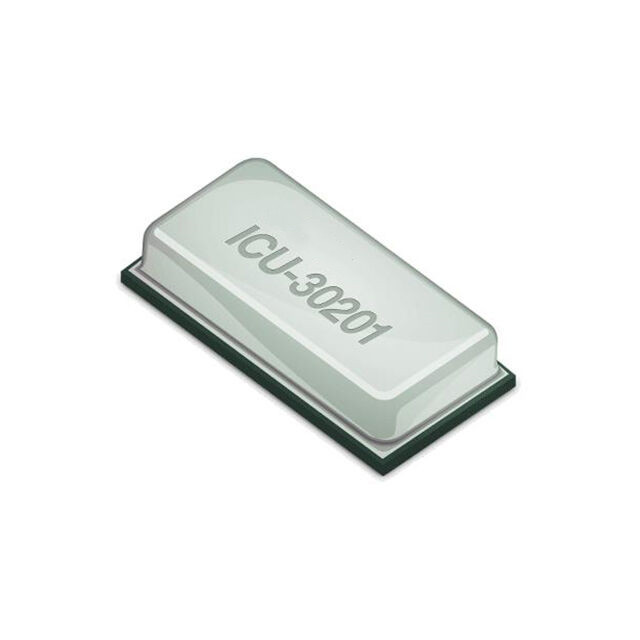

The ICU-30201 ultrasonic time-of-flight distance sensor is a high-performance, ultra-compact solution designed for ultra-long-distance applications. The ICU-30201 has a ranging distance of 30cm to 9.5m, with an accuracy in millimeters, and is not affected by lighting conditions or the transparency of the target.

Key features

Fast and accurate distance measurement

The 40MHz integrated CPU supports on-chip algorithms, including ranging, human presence, and wake-up methods, among others

Working distance: 30cm to 9.5m

Human presence detection up to 7 meters

Programmable mode, optimized for long-distance or short-distance sensing applications

A customizable field of view (FoV) of up to 180°

Multi-object detection

Work under any lighting conditions, from full sunlight to full darkness

It is not sensitive to the color of objects and can detect optical transparent surfaces (such as glass, transparent plastic, etc.)

Low supply current

The measurement per second (at A maximum distance of 9 meters) is 30µA

Measuring 11 times per second (at A maximum distance of 9 meters) results in 243µA

Easy to integrate

A single bottom port is used for receiving and transmitting

1.8V or 3.3V I/O voltage

Low-power 1.8V core operating voltage

The 13MHz SPI interface supports the output of baseband data streams at full measurement rates

Optional 32kHz reference clock input

Two programmable leak-off I/ OS are used to trigger sensors or wake up the host

Platform-independent software drivers enable turnkey ranging

Micro-integrated packaging

5.17mm x 2.68mm x 0.9mm, 13-pin LGA

Compatible with standard SMD reflow soldering

Operating temperature range: -40 °C to +85 °C

The ICU-30201 sensor features a customizable field of view of up to 180°, supports multi-object detection, operates with ultra-low power consumption, and extends battery life. This sensor integrates a 53kHz piezoelectric microfabrication ultrasonic transducer (PMUT) and a second-generation ultra-low power system-on-chip (SoC) in a miniature, reflow solderable package.

Application field

ICU-30201 is highly suitable for use in smart homes, building automation, robotics and obstacle avoidance, enhancing situational awareness and reliability in various environments.
