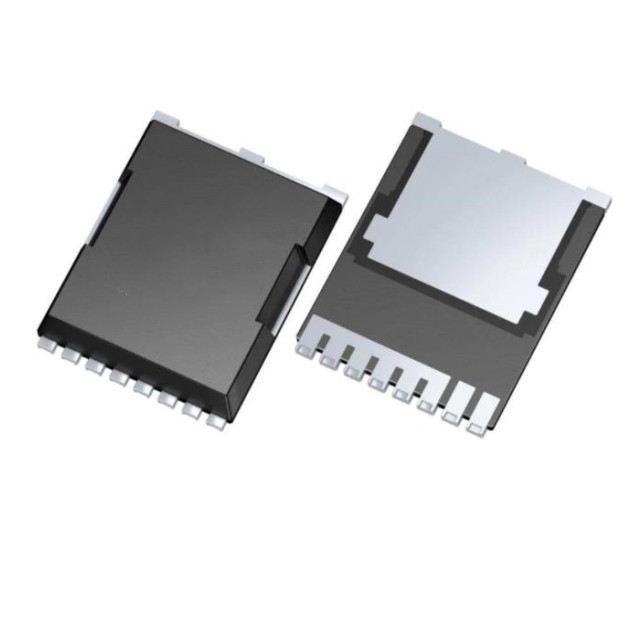

IMT65R010M2H is the second generation (G2) CoolSiC™ MOSFET from Infineon Technologies in TOLL package with a rated voltage of 650V and on-resistance of 10mΩ‌. The product significantly reduces thermal resistance through improved thermal cycling and.XT interconnect technology, making it suitable to fully utilize the advantages of silicon carbide materials in efficient, compact systems ‌.

IMT65R010M2H Specifications

Package/housing: HSOF-8

Transistor polarity: N-Channel

Number of channels: 1 Channel

Vds- drain-source breakdown voltage: 650 V

Id- Continuous drain current: 168 A

Rds On- drain-source on-resistance: 13.1 mOhms

Vgs - grid - source voltage: -7V, + 23V

Vgs TH-gate source threshold voltage: 4.5V

Qg- Grid charge: 113 nC

Operating temperature: -55 °C to + 175°C

Pd-power dissipation: 681 W

Channel mode: Enhancement

Brand name: CoolSiC

Trademark: Infineon Technologies

Configuration: Single

Drop time: 9.4ns

Rise time: 24 ns

Series: 650V G2

Transistor type: 1 N-Channel

Type: SiC MOSFET

Typical shutdown delay: 30 ns

Typical connection delay: 16 ns
