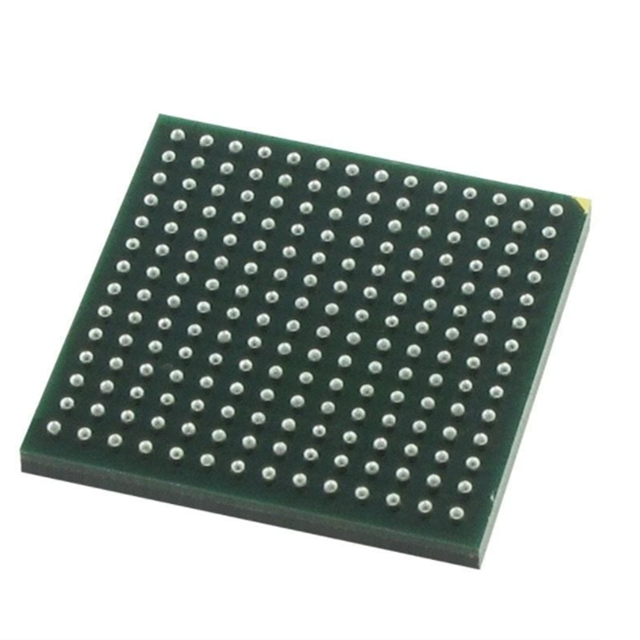

The AD6679BBPZ-500 is a 135 MHz mixed-signal intermediate frequency (IF) receiver. Built-in dual-channel, 14-bit, 500-msps analog-to-digital converters (ADCs) and a variety of digital signal processing modules, including four broadband DDCS, an NSR, and VDR monitors.

The AD6679BBPZ-500 features an on-chip buffer and sample-and-hold circuit, designed specifically for low power consumption, small size, and ease of use. The product is designed to support communication applications, enabling wide-band analog signal sampling up to 2 GHz. The AD6679 is optimized for wide input bandwidth, high sampling rates, excellent linearity and low power consumption in small packages.

The AD6679BBPZ-500 has the following features:

Parallel LVDS(DDR) output

In-band SFDR = 82 dBFS (500 MSPS at 340 MHz)

In-band SNR = 67.8 dBFS (500 MSPS at 340 MHz)

Total power consumption per channel at 500 MSPS: 1.1W (default)

Noise density = −153 dBFS/Hz (500 MSPS)

Dc power supply: 1.25V, 2.50V and 3.3V

Flexible input range

1.46V p-p to 2.06V p-p (nominal value 2.06V p-p)

95 dB channel isolation/crosstalk

Amplitude detection bits enable efficient automatic gain control (AGC)

The Noise shaping requantizer (NSR) option supports the main receiver function
