The LTC5585IUF is a direct conversion quadrature demodulator optimized for high linearity receiver applications in the frequency range from 400 MHZ to 4GHz. It is suitable for communication receivers that convert an RF signal directly into an I and Q baseband signal with a bandwidth of 530MHz or higher.

The LTC5585IUF has built-in balanced I and Q mixers, LO buffer amplifiers, and a precise high frequency orthogonal phase shifter. The integrated on-chip wideband transformer provides a single-ended interface at the RF input using a simple off-chip L-C matching process. In addition, the LTC5585IUF provides four analog control voltage interface pins for IIP2 and DC offset correction, greatly simplifying system calibration.

Basic parameter

Model: LTC5585IUF

Type: Demodulator

Modulation format: Quadrature

Maximum frequency: 4 GHz

Minimum frequency: 400 MHz

Working power supply voltage: 4.75V to 5.25V

Working power supply current: 200 mA

Technology: Si

Operating temperature: -40 °C to + 105°C

Installation style: SMD/SMT

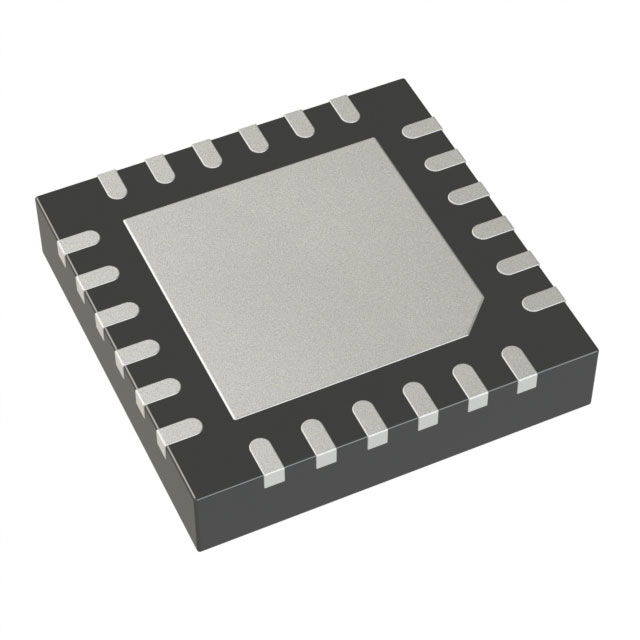

Package/box: QFN-24
